    • Energy efficiency and long life

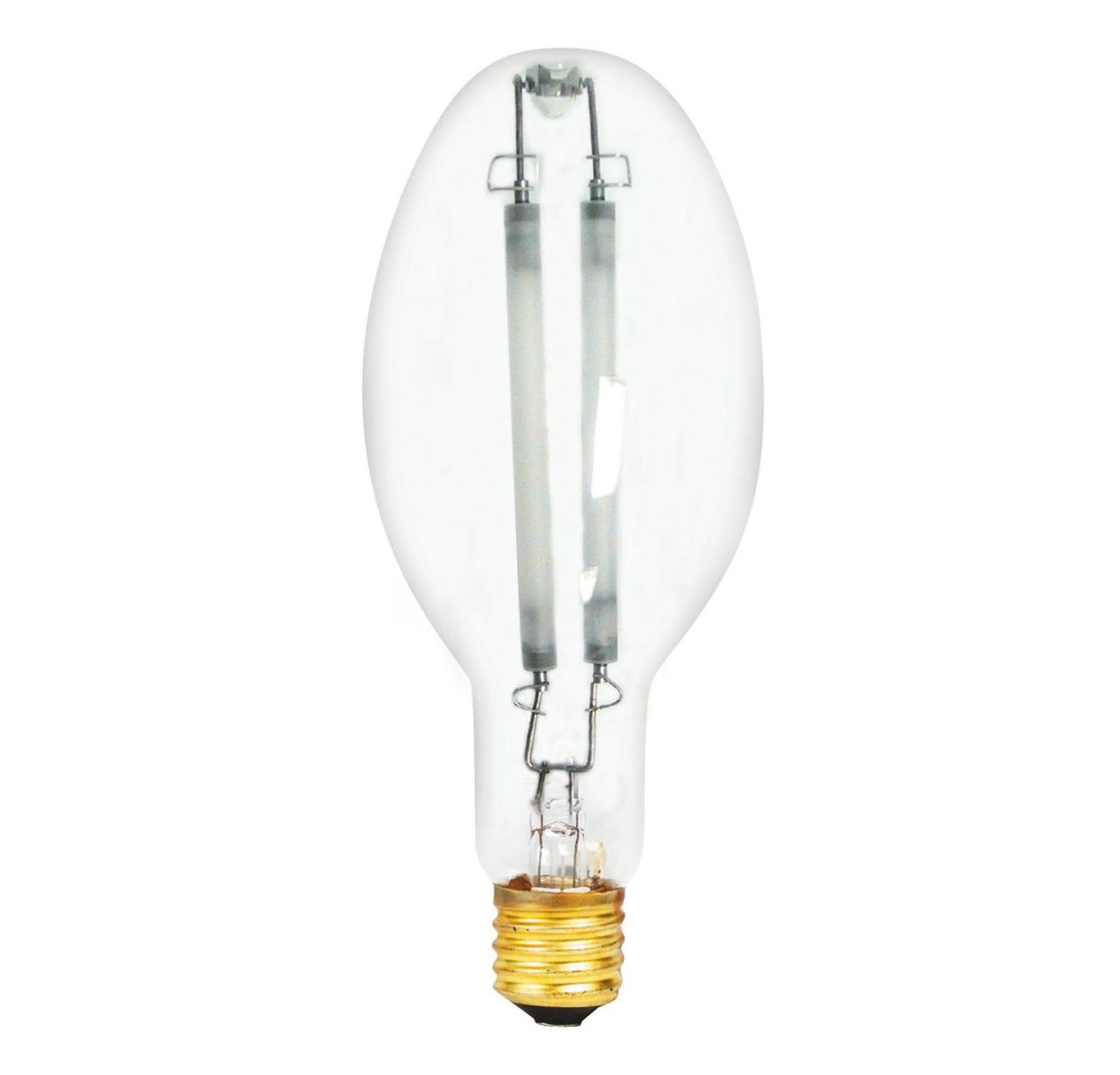

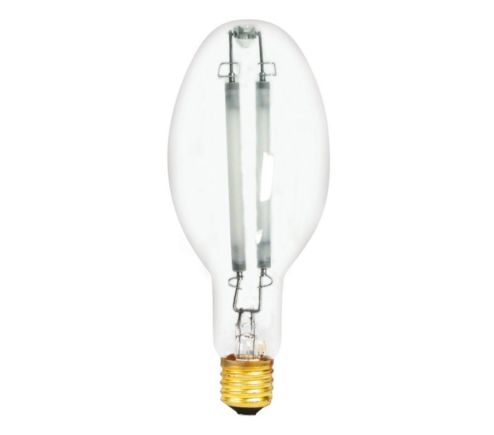

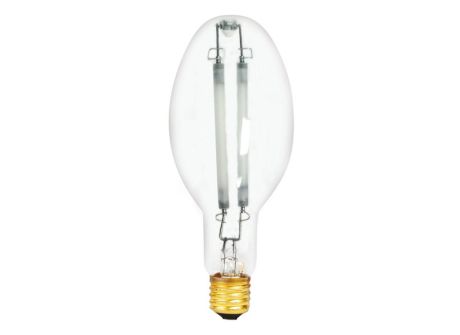

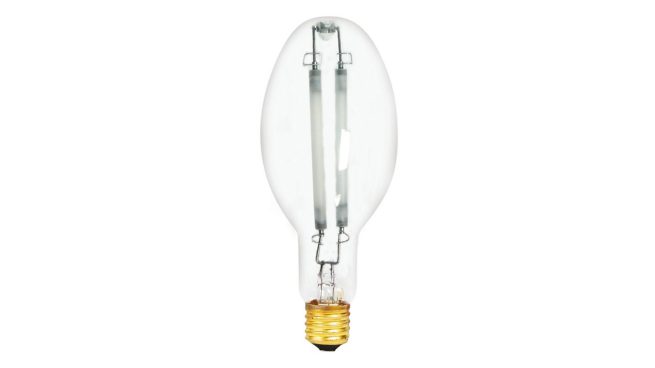

      C1000S52/ED37 6PK
      C1000S52/ED37 6PK

      C1000S52/ED37 6PK

      Order code: 323865


      Size:354.4 kB

      See all downloads

    Specifications Show all

    General Information
    E39  [ Single Contact Mogul Screw]
    Operating Position
    Universal  [ Universal]
    Main Application
    General and Street Lighting
    ANSI Code HID
    Footnotes HID 1
    For use in fixtures which do not redirect a substantial portion of the energy toward the arc tube; otherwise very early failure is anticipated. (376)
    Light Technical
    Luminous Flux (Rated) (Min)
    108000 lm
    Luminous Flux (Rated) (Nom)
    125000 lm
    Lumen Maintenance 10000 h (Nom)
    90 %
    Photosynthetic Photon Flux (PPF)
    1550 µmol/s
    Design Mean Lumens
    112000 lm
    Chromaticity Coordinate X (Nom)
    Chromaticity Coordinate Y (Nom)
    Correlated Color Temperature (Nom)
    2100 K
    Luminous Efficacy (Rated) (Min)
    108 lm/W
    Luminous Efficacy (rated) (Nom)
    125 lm/W
    Color Rendering Index (Nom)
    Operating and Electrical
    Lamp Current (Nom)
    4.7 A
    Ignition Supply Voltage (Min)
    456 V
    Re-Ignition Time (Min) (Max)
    2 min
    Ignition Time (Max)
    5 s
    Voltage (Max)
    270 V
    Voltage (Min)
    210 V
    Voltage (Nom)
    225 V
    Mechanical and Housing
    Bulb Finish
    Clear (CL)
    Cap-Base Information
    Bulb Material
    Hard Glass
    Approval and Application
    Picogram Per Lumen Hour
    20.5 pg/lm.h
    Mercury (Hg) Content (Max)
    55.2 mg
    Luminaire Design Requirements
    Bulb Temperature (Max)
    400 °C
    Cap-Base Temperature (Max)
    210 °C
    Product Data
    Order product name
    C1000S52/ED37 6PK
    EAN/UPC - Product
    Order code
    Numerator - Quantity Per Pack
    Numerator - Packs per outer box
    Material Nr. (12NC)
    Net Weight (Piece)
    0.001 kg

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    E39, ED-37
    E39, ED-37
