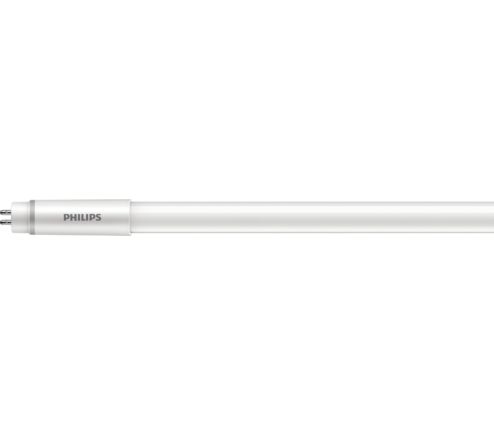

8T5HE/COR/22-850/MF10/G 25/1

Specifications Show all

Operating and Electrical

Line Frequency	50 to 60 Hz
Warm-up time to 60% light	0.5 s
Power Factor (Fraction)	0.9
Starting Time (Nom)	0.5 s
Voltage (Nom)	120-277 V
Wattage Equivalent	14 W
Input Frequency	50 to 60 Hz
Power Consumption	8 W

Approval and Application

Energy Saving Product	Yes
Approval Marks	RoHS compliance	UL certificate

Product Data

Order product name	8T5HE/COR/22-850/MF10/G 25/1
EAN/UPC - Case	50046677576160
Net weight	0.080 kg
Numerator - Packs per outer box	25
Full product name	8T5HE/COR/22-850/MF10/G 25/1
Material number (12NC)	929003122904
Order code	576165
Numerator - Quantity Per Pack	1

Controls and Dimming

Dimmable

Limited

Mechanical and Housing

Product Length	23-5/8 inch
Bulb Finish	Frosted
Bulb Shape	Tube, double-ended
Bulb Material	Glass

General Information

Switching Cycle	50,000
Cap-Base	G5  [G5]
Lighting Technology	LED
EU RoHS compliant	Yes
Nominal lifetime	50,000 hour(s)
Brand	Philips

Temperature

T-Case Maximum (Nom)	158 °F
Ambient temperature range	-20 °C to 45 °C

Light Technical

Correlated Color Temperature (Nom)	5000 K
Luminous Efficacy (rated) (Nom)	131.00 lm/W
Luminous Flux	1,050 lumen
Color Designation	Daylight
LLMF At End Of Nominal Lifetime (Nom)	70 %
Color Consistency	<5
Color rendering index (CRI)	80
Beam Angle (Nom)	200 degree(s)
Color Code	850  [CCT of 5000K]
