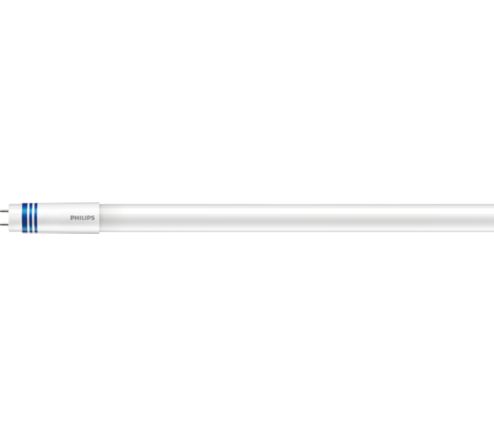

Master LEDtube Universal 1200mm UO 16W830 T8

Specifications Show all

General Information

Base	G13  [ Medium Bi-Pin Fluorescent]
Main Application	Industrial
Nominal Lifetime (Nom)	60000 h
Switching Cycle	50000X
B50L70	60000 h

Light Technical

Color Code	830  [ CCT of 3000K]
Initial lumen (Nom)	2300 lm
Luminous Flux (Rated) (Nom)	2300 lm
Correlated Color Temperature (Nom)	3000 K
Color Consistency	<6
Color Rendering Index (Nom)	83
LLMF At End Of Nominal Lifetime (Nom)	70 %

Operating and Electrical

Input Frequency	50 to 60 Hz
Power (Rated) (Nom)	16 W
Lamp Current (Nom)	75 mA
Starting Time (Nom)	0.5 s
Warm Up Time to 60% Light (Nom)	0.5 s
Power Factor (Nom)	0.9
Voltage (Nom)	220-240 V

Temperature

T-Ambient (Max)	45 °C
T-Ambient (Min)	-20 °C
T-Storage (Max)	65 °C
T-Storage (Min)	-40 °C
T-Case Maximum (Nom)	45 °C

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Material	Plastic
Product Length	1200 mm

Approval and Application

Energy Efficiency Label (EEL)	A++
Energy Saving Product	Yes
Approbation Marks	RoHS compliance	TUV	CE marking	KEMA Keur certificate
Energy Consumption kWh/1000 h	16 kWh

Product Data

XUCDM.COPY.Product.Title	Master LEDtube Universal 1200mm UO 16W830 T8
EAN/UPC - Product	8718696728536
Order code	346569
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	10
Material Nr. (12NC)	929001336002
Net Weight (Piece)	0.270 kg
