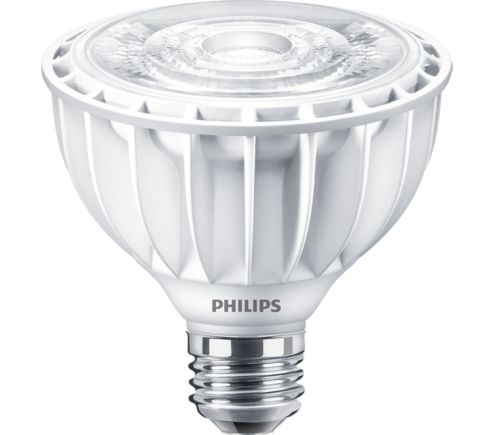

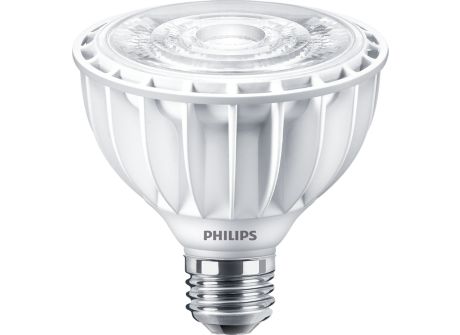

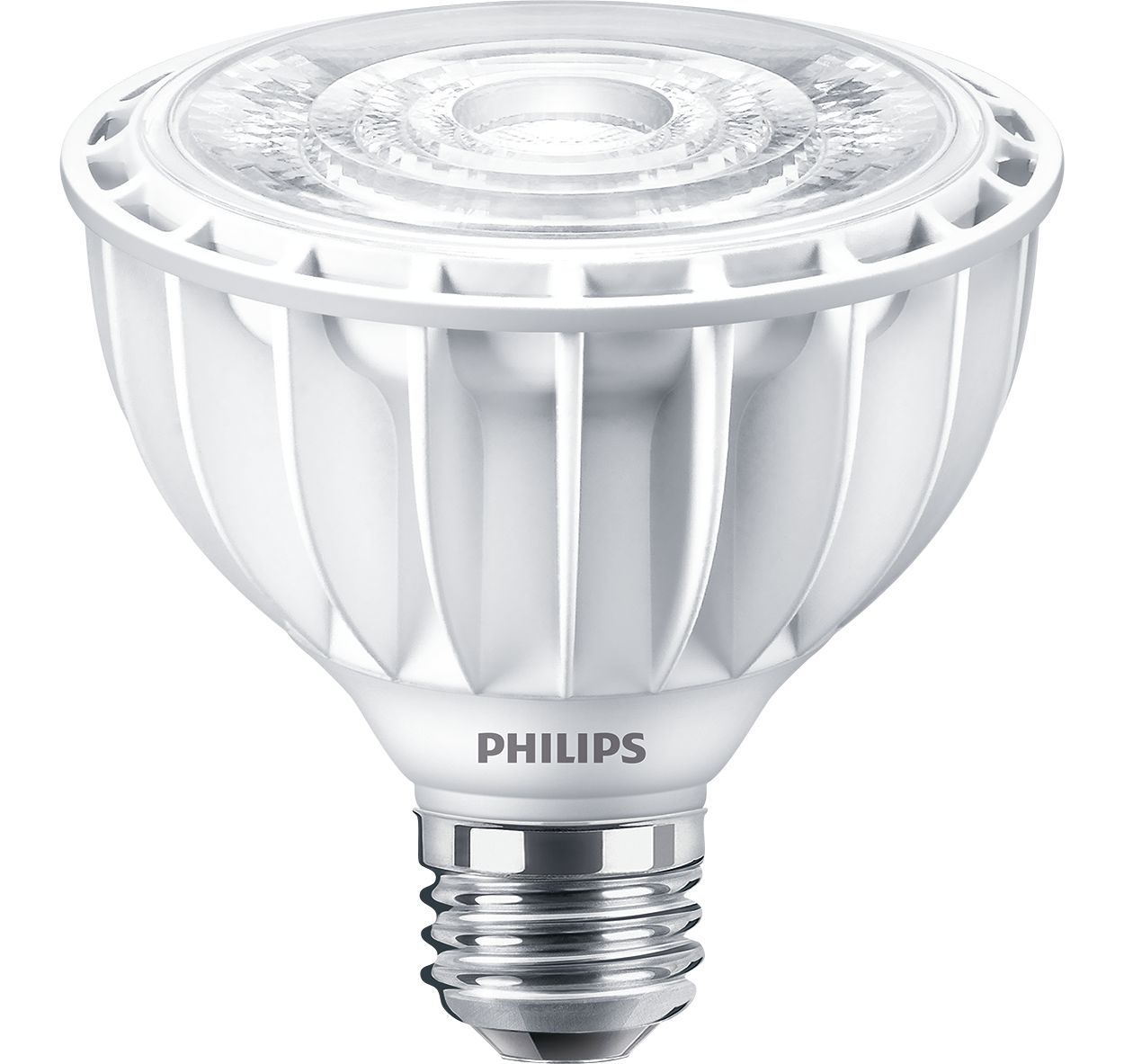

23PAR30s/PER/930/F25/ND/120V 6/1FB

Specifications Show all

Operating and Electrical

Warm-up time to 60% light	0.5 s
Lamp Current (Nom)	206 mA
Voltage (Nom)	120 V
Power Factor (Fraction)	0.9
Wattage Equivalent	75 W
Line Frequency	50 to 60 Hz
Power Consumption	23 W
Input Frequency	50 to 60 Hz
Starting Time (Nom)	0.5 s

Approval and Application

Suitable For Accent Lighting	Yes
Energy Consumption kWh/1000 h	- kWh
EU RoHS compliant	Yes
Energy Certifications	Energy Star

Product Data

Full product name	23PAR30s/PER/930/F25/ND/120V 6/1FB
EAN/UPC - Case	50046677534696
Order code	534693
Numerator - Packs per outer box	6
Material number (12NC)	929001917504
Numerator - Quantity Per Pack	1
Order product name	23PAR30s/PER/930/F25/ND/120V 6/1FB

Controls and Dimming

Dimmable

No

General Information

Cap-Base	E26  [Single Contact Medium Screw]
Switching Cycle	50,000
Lighting Technology	LED
Nominal lifetime	25,000 hour(s)

Mechanical and Housing

Bulb Shape	PAR30S  [PAR 3.75 inch/95mm Short]
Bulb Finish	Clear
Bulb Material	Aluminum

Temperature

T-Case Maximum (Nom)

201.2 °F

Light Technical

Luminous Flux	1,900 lumen
Luminous Efficacy (rated) (Nom)	82.00 lm/W
Color rendering index (CRI)	90
Correlated Color Temperature (Nom)	3000 K
Beam Angle (Nom)	25 degree(s)
Color Designation	White (WH)
LLMF At End Of Nominal Lifetime (Nom)	70 %
Luminous Intensity (Nom)	9,000 cd
Color Consistency	<4
Color Code	930  [CCT of 3000K]
