    • Everything you value in a Halogen PAR38 with the benefits of LED. Accent your merchandise or space without distraction.

      14PAR38/COR/930/F25/D/P/B/ULW/T20 6/1FB
      LED
      14PAR38/COR/930/F25/D/P/B/ULW/T20 6/1FB

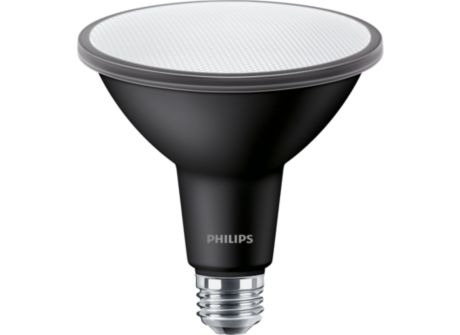

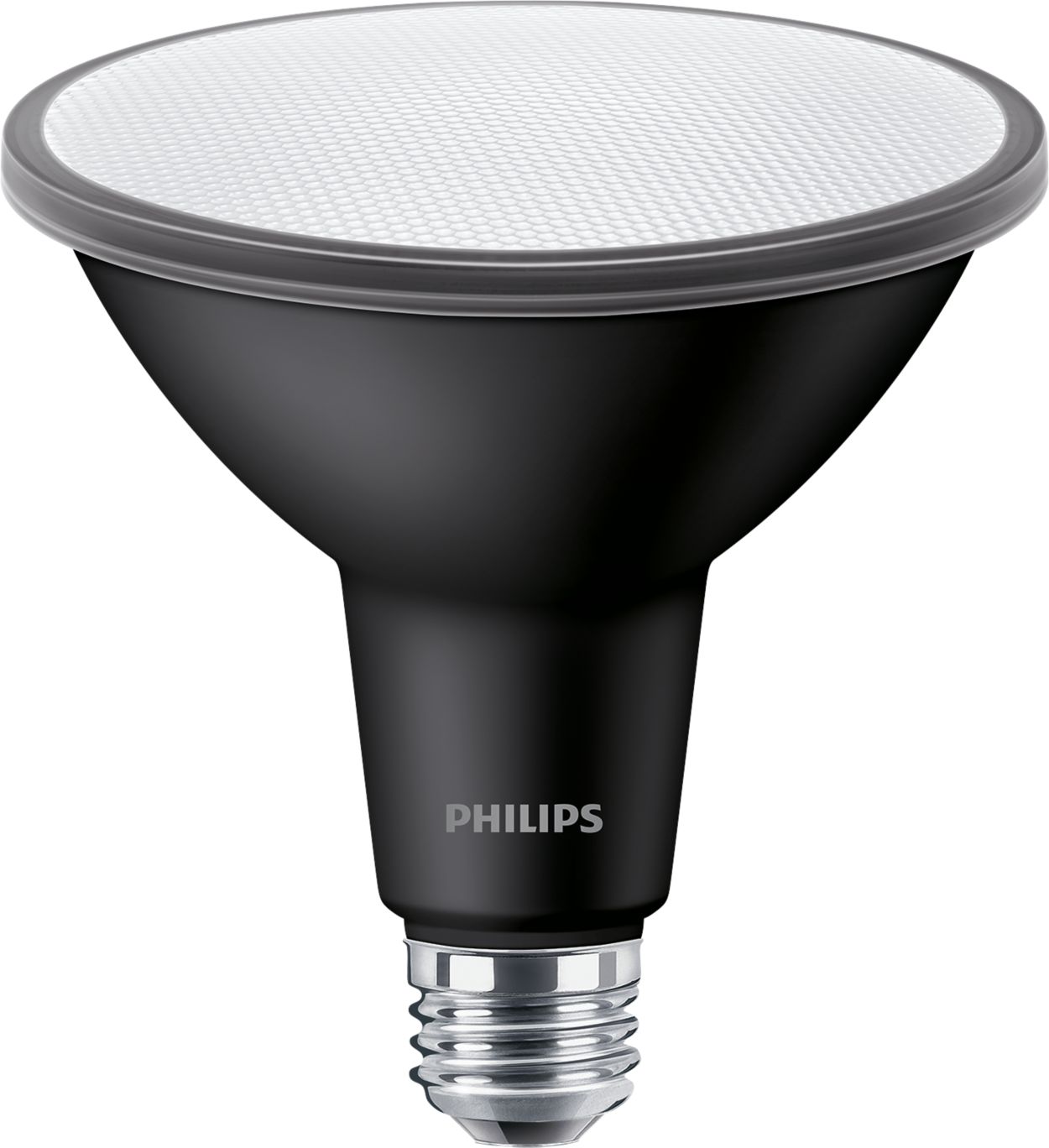

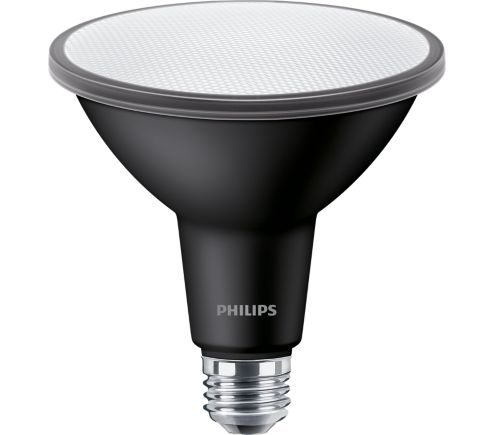

      LED PAR38

      14PAR38/COR/930/F25/D/P/B/ULW/T20 6/1FB

      Order code: 576470

      Downloads

      Spec Sheet
      Size:630.1 kB

      See all downloads

    Specifications Show all

    General information
    Base
    E26  [ Single Contact Medium Screw]
    EU RoHS compliant
    Yes
    Nominal Lifetime (Nom)
    25000 h
    Switching Cycle
    50000
    Tier
    CorePro
    Light technical
    Color Code
    930  [ CCT of 3000K]
    Beam Angle (Nom)
    25 °
    Initial lumen (Nom)
    1300 lm
    Luminous Intensity (Nom)
    5382 cd
    Color Designation
    White (WH)
    Correlated Color Temperature (Nom)
    3000 K
    Luminous Efficacy (rated) (Nom)
    92.00 lm/W
    Color Consistency
    <4
    Color Rendering Index (Nom)
    90
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Operating and electrical
    Input Frequency
    50 to 60 Hz
    Power (Rated) (Nom)
    14 W
    Lamp Current (Nom)
    136 mA
    Wattage Equivalent
    120 W
    Starting Time (Nom)
    0.5 s
    Warm Up Time to 60% Light (Nom)
    0.5 s
    Power Factor (Nom)
    0.9
    Voltage (Nom)
    120 V
    Temperature
    T-Case Maximum (Nom)
    185 °F
    Controls and dimming
    Dimmable
    Only with specific dimmers
    Mechanical and housing
    Bulb Finish
    Clear
    Bulb Material
    Plastic
    Bulb Shape
    PAR38  [ PAR 4.75 inch/121mm]
    Approval and application
    Suitable For Accent Lighting
    Yes
    Energy Certifications
    Energy Star
    Product data
    Order product name
    14PAR38/COR/930/F25/D/P/B/ULW/T20 6/1FB
    EAN/UPC - Product
    046677576479
    Order code
    576470
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    6
    Material Nr. (12NC)
    929003133804
    Net Weight (Piece)
    1.179 lb

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     Single Contact Medium Screw PAR 4.75 inch/121mm Clear
    Single Contact Medium Screw PAR 4.75 inch/121mm Clear
    E26
    E26
    Performance Diagrams
    Lumen Maintenance Diagram
    Lumen Maintenance Diagram
    Life Expectancy Diagram
    Life Expectancy Diagram
    Photometrics
    LESspots BH 14W PAR38 E26 930 25D-LA2
    LESspots BH 14W PAR38 E26 930 25D-LA2
    LESspots BH 14W PAR38 E26 930 25D-POC
    LESspots BH 14W PAR38 E26 930 25D-POC
    LESspots BH 14W PAR38 E26 930 25D-LDD
    LESspots BH 14W PAR38 E26 930 25D-LDD
    Downloads
    Leaflets
    Green Data
    Visuals
    Photometry/BIM Files
    • IES LESspots BH 14W PAR38 E26 930 25D-IES IES 4.8 kB
