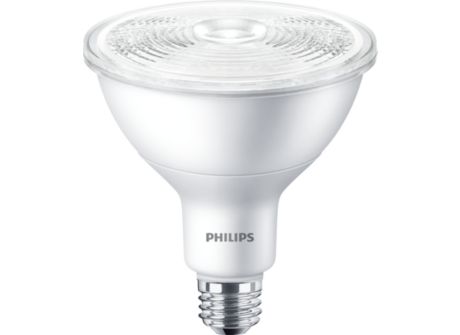

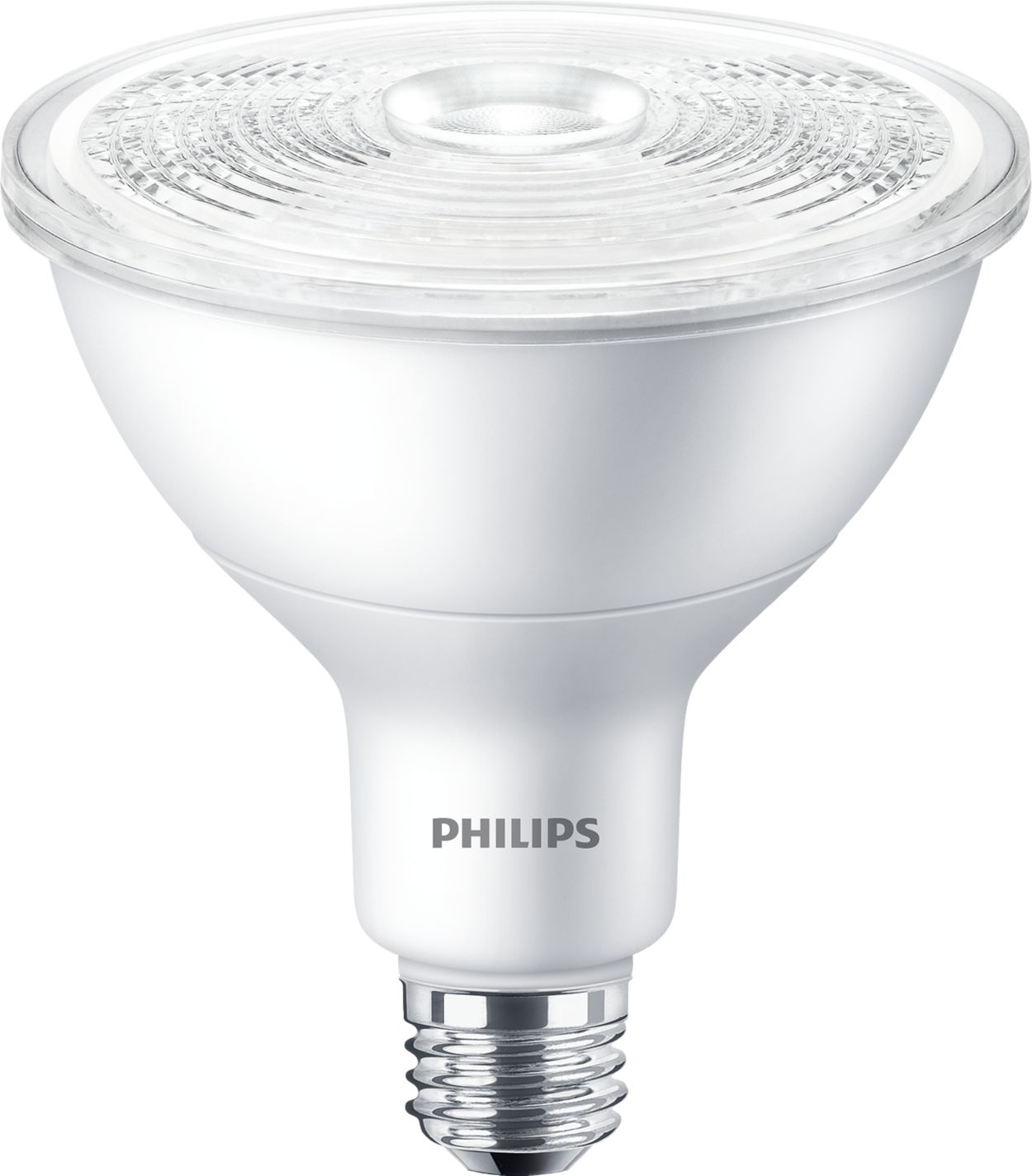

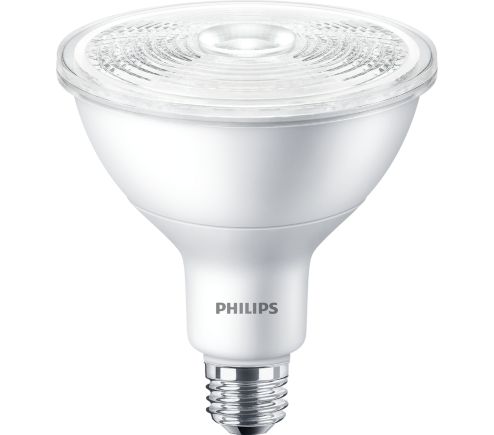

17PAR38/EXPERTCOLOR RETAIL/S8/930/DIM

Specifications Show all

Operating and Electrical

Lamp Current (Nom)	170 mA
Warm-up time to 60% light	0.5 s
Voltage (Nom)	120 V
Power Factor (Fraction)	0.9
Wattage Equivalent	100 W
Line Frequency	60 Hz
Power Consumption	17 W
Input Frequency	60 Hz
Starting Time (Nom)	0.5 s

Approval and Application

Suitable For Accent Lighting	Yes
Energy Certifications	Energy Star
Energy Consumption kWh/1000 h	- kWh
EU RoHS compliant	Yes

Product Data

Full product name	17PAR38/EXPERTCOLOR RETAIL/S8/930/DIM
EAN/UPC - Case	50046677470994
Order code	470996
Numerator - Packs per outer box	6
Material number (12NC)	929001285204
Numerator - Quantity Per Pack	1
Order product name	17PAR38/EXPERTCOLOR RETAIL/S8/930/DIM

Controls and Dimming

Dimmable

Yes

General Information

Cap-Base	E26  [Single Contact Medium Screw]
Switching Cycle	50,000
Lighting Technology	LED
Nominal lifetime	25,000 hour(s)

Mechanical and Housing

Bulb Shape	PAR38  [PAR 4.75 inch/121mm]
Bulb Finish	Clear
Bulb Material	Plastic

Temperature

T-Case Maximum (Nom)

194 °F

Light Technical

Luminous Flux	1,200 lumen
Luminous Efficacy (rated) (Nom)	70 lm/W
Color rendering index (CRI)	90
Correlated Color Temperature (Nom)	3000 K
Beam Angle (Nom)	8 degree(s)
LLMF At End Of Nominal Lifetime (Nom)	70 %
Color Designation	White (WH)
Color Consistency	<6
Luminous Intensity (Nom)	22,000 cd
Color Code	930  [CCT of 3000K]
