    • Everything you value in a Halogen PAR30 with the benefits of LED. Accent your merchandise or space without distraction.

      9.4PAR30L/COR/930/F25/DIM/120V T20 6/1FB
      LED
      9.4PAR30L/COR/930/F25/DIM/120V T20 6/1FB

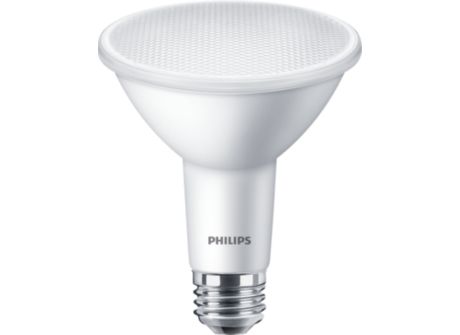

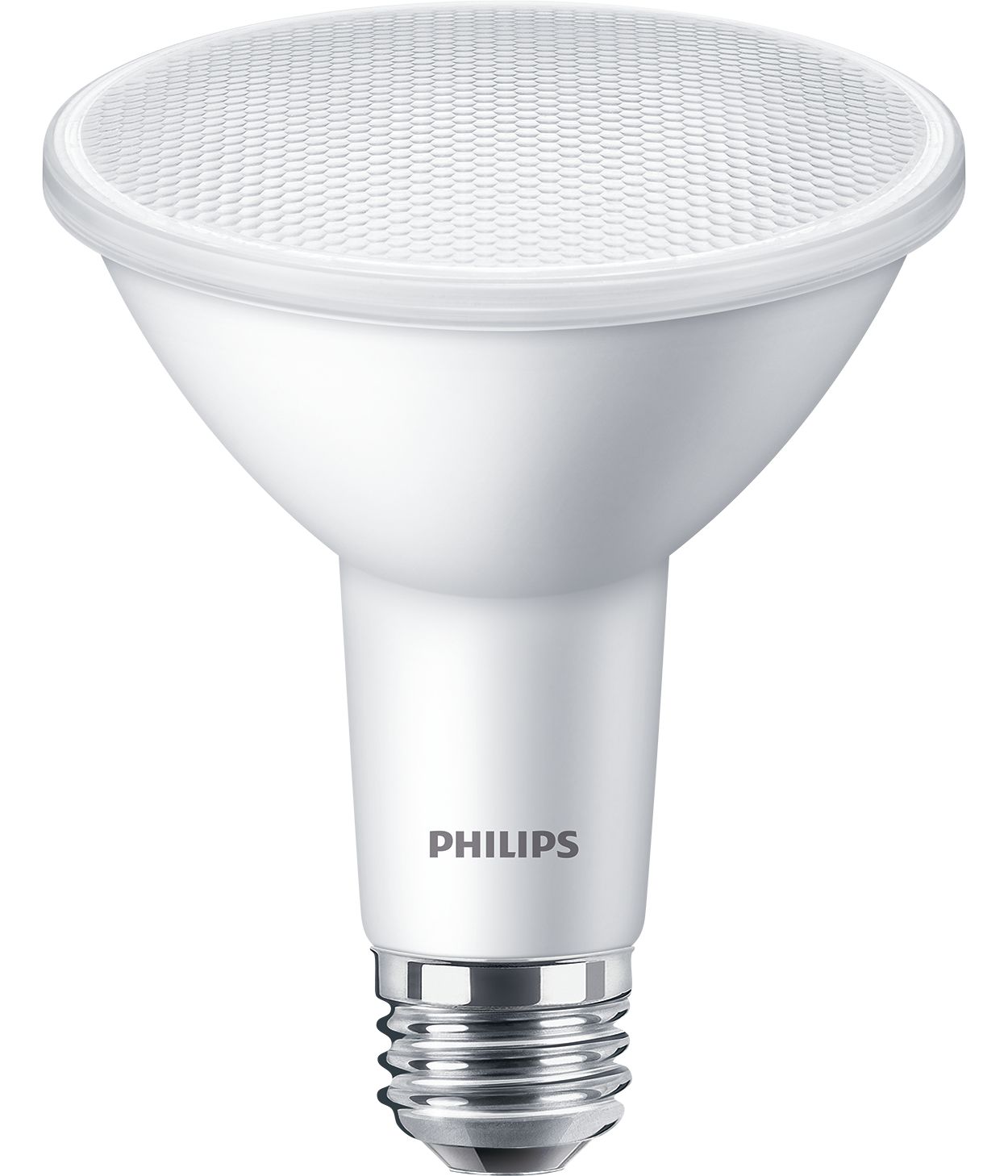

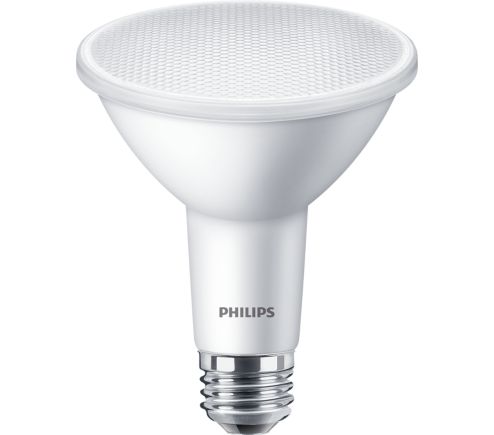

      LED PAR30 S/L

      9.4PAR30L/COR/930/F25/DIM/120V T20 6/1FB

      Order code: 546969

      Downloads

      Spec Sheet
      Size:600.3 kB

      See all downloads

    Specifications Show all

    General information
    Base
    E26  [ Single Contact Medium Screw]
    EU RoHS compliant
    Yes
    Nominal Lifetime (Nom)
    25000 h
    Switching Cycle
    50000
    Light technical
    Color Code
    930  [ CCT of 3000K]
    Beam Angle (Nom)
    25 °
    Initial lumen (Nom)
    850 lm
    Luminous Intensity (Nom)
    2910 cd
    Color Designation
    White (WH)
    Correlated Color Temperature (Nom)
    3000 K
    Luminous Efficacy (rated) (Nom)
    90.00 lm/W
    Color Consistency
    <4
    Color Rendering Index (Nom)
    90
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Operating and electrical
    Input Frequency
    50 to 60 Hz
    Power (Rated) (Nom)
    9.4 W
    Lamp Current (Nom)
    90 mA
    Wattage Equivalent
    75 W
    Starting Time (Nom)
    0.5 s
    Warm Up Time to 60% Light (Nom)
    0.5 s
    Power Factor (Nom)
    0.9
    Voltage (Nom)
    120 V
    Temperature
    T-Case Maximum (Nom)
    176 °F
    Controls and dimming
    Dimmable
    Yes
    Mechanical and housing
    Bulb Finish
    Clear
    Bulb Material
    Plastic
    Bulb Shape
    PAR30L  [ PAR 3.75 inch/95mm Long]
    Approval and application
    Suitable For Accent Lighting
    Yes
    Energy Consumption kWh/1000 h
    - kWh
    Energy Certifications
    Energy Star
    Product data
    Order product name
    9.4PAR30L/COR/930/F25/DIM/120V T20 6/1FB
    EAN/UPC - Product
    046677546960
    Order code
    546969
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    6
    Material Nr. (12NC)
    929002045404
    Net Weight (Piece)
    0.628 lb

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     Single Contact Medium Screw PAR 3.75 inch/95mm Long Clear
    Single Contact Medium Screw PAR 3.75 inch/95mm Long Clear
    E26
    E26
    Performance Diagrams
    Lumen Maintenance Diagram
    Lumen Maintenance Diagram
    Life Expectancy Diagram
    Life Expectancy Diagram
    Photometrics
    LEDspots 9,4W PAR30L E26 930 25D
    LEDspots 9,4W PAR30L E26 930 25D
    LEDspots 9,4W PAR30L E26 930 25D
    LEDspots 9,4W PAR30L E26 930 25D
    LEDspots 9,4W PAR30L E26 930 25D
    LEDspots 9,4W PAR30L E26 930 25D
