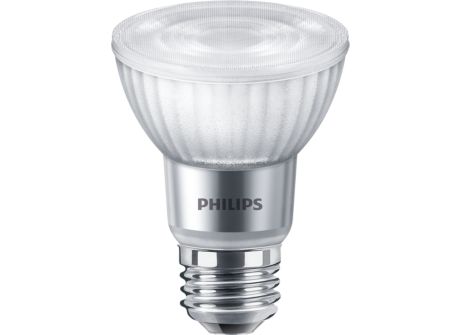

5.5PAR20/LED/F40/927-922/DIM/G/T20 6/1FB

Specifications Show all

Operating and Electrical

Lamp Current (Nom)	54 mA
Warm-up time to 60% light	0.5 s
Voltage (Nom)	120 V
Power Factor (Fraction)	0.9
Wattage Equivalent	50 W
Line Frequency	50 to 60 Hz
Power Consumption	5.5 W
Input Frequency	50 to 60 Hz
Starting Time (Nom)	0.5 s

Approval and Application

Suitable For Accent Lighting	Yes
Energy Certifications	Energy Star
EU RoHS compliant	Yes

Product Data

Full product name	5.5PAR20/LED/F40/927-922/DIM/G/T20 6/1FB
EAN/UPC - Case	50046677568110
Order code	568113
Numerator - Packs per outer box	6
Material number (12NC)	929003026704
Numerator - Quantity Per Pack	1
Order product name	5.5PAR20/LED/F40/927-922/DIM/G/T20 6/1FB

Controls and Dimming

Dimmable

Only with specific dimmers

General Information

Cap-Base	E26  [Single Contact Medium Screw]
Switching Cycle	50,000
Lighting Technology	LED
Nominal lifetime	25,000 hour(s)

Mechanical and Housing

Bulb Shape	PAR20  [PAR 2.5 inch/63mm]
Bulb Finish	Clear
Bulb Material	Glass

Temperature

T-Case Maximum (Nom)

167 °F

Light Technical

Luminous Flux	500 lumen
Luminous Efficacy (rated) (Nom)	90.00 lm/W
Color rendering index (CRI)	90
Correlated Color Temperature (Nom)	2200 K	2700 K
Beam Angle (Nom)	40 degree(s)
Color Designation	Warm Glow(WG)
LLMF At End Of Nominal Lifetime (Nom)	70 %
Luminous Intensity (Nom)	800 cd
Color Consistency	<4
Color Code	922-927  [CCT of 2200K-2700K]
