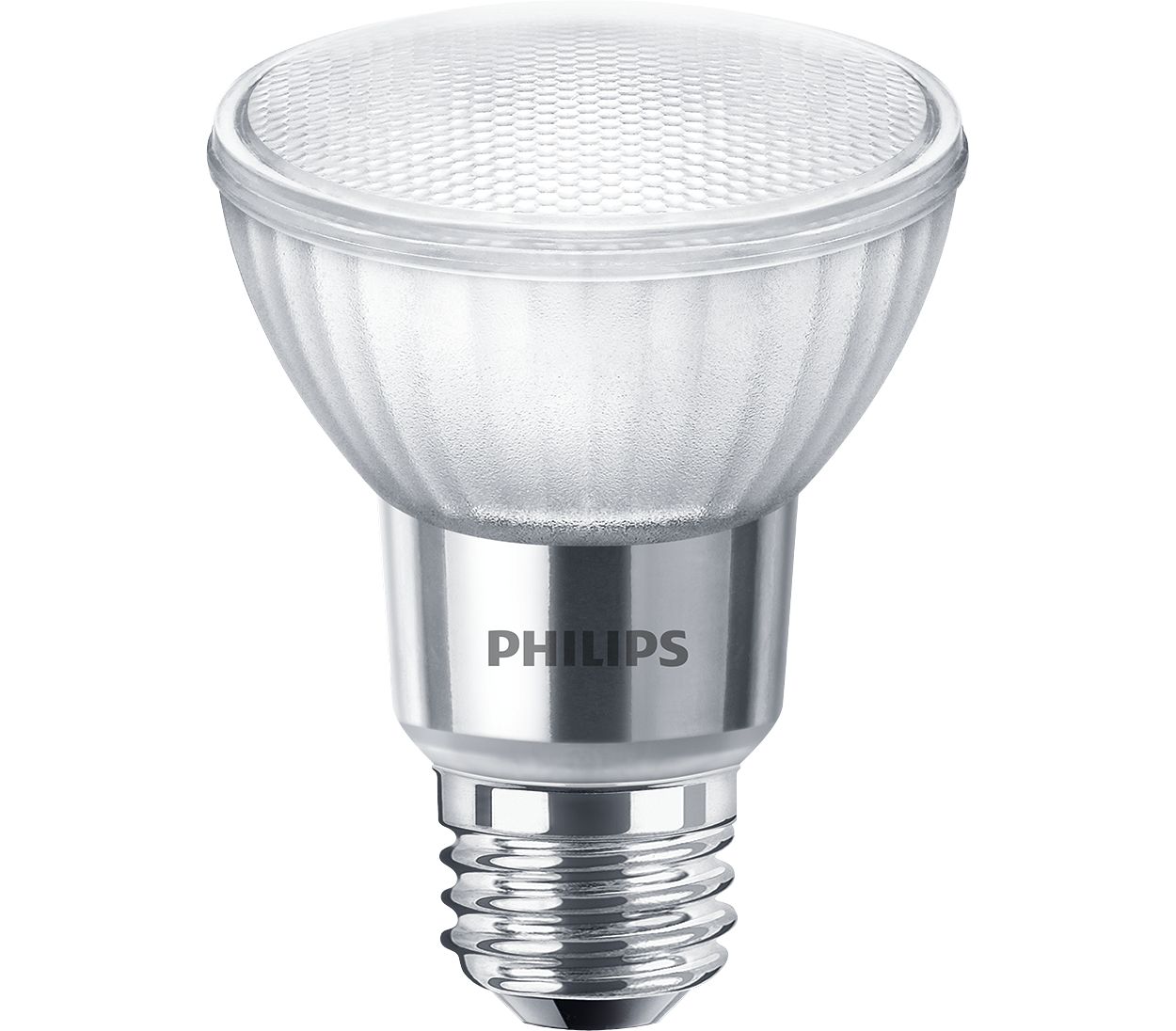

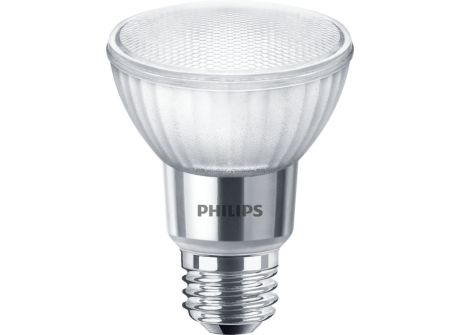

7PAR20/LED/F40/830/E26/GL/DIM 120V 6/1

Specifications Show all

Operating and Electrical

Warm-up time to 60% light	0.5 s
Lamp Current (Nom)	70 mA
Voltage (Nom)	120 V
Power Factor (Fraction)	0.8
Wattage Equivalent	50 W
Line Frequency	60 Hz
Power Consumption	7 W
Input Frequency	60 Hz
Starting Time (Nom)	0.5 s

Approval and Application

Suitable For Accent Lighting	Yes
Energy Consumption kWh/1000 h	- kWh
EU RoHS compliant	Yes

Product Data

Full product name	7PAR20/LED/F40/830/E26/GL/DIM 120V 6/1
EAN/UPC - Case	50046677471144
Order code	471144
Numerator - Packs per outer box	6
Material number (12NC)	929001316904
Numerator - Quantity Per Pack	1
Order product name	7PAR20/LED/F40/830/E26/GL/DIM 120V

Controls and Dimming

Dimmable

Yes

General Information

Cap-Base	E26  [Single Contact Medium Screw]
Switching Cycle	25,000
Lighting Technology	LED
Nominal lifetime	25,000 hour(s)

Mechanical and Housing

Bulb Shape	PAR20  [PAR 2.5 inch/63mm]
Bulb Finish	Clear
Bulb Material	Glass

Temperature

T-Case Maximum (Nom)

194 °F

Light Technical

Luminous Flux	500 lumen
Luminous Efficacy (rated) (Nom)	71.43 lm/W
Color rendering index (CRI)	80
Correlated Color Temperature (Nom)	3000 K
Beam Angle (Nom)	40 degree(s)
LLMF At End Of Nominal Lifetime (Nom)	70 %
Color Designation	White (WH)
Luminous Intensity (Nom)	1,000 cd
Color Consistency	<6
Color Code	830  [CCT of 3000K]
