    • The new generation of energy-saving LED PLC 2P tube lighting

      CorePro LED PLC 8.5W 840 2P G24d-3
      LED
      CorePro LED PLC 8.5W 840 2P G24d-3
      CorePro LED PLC 2P

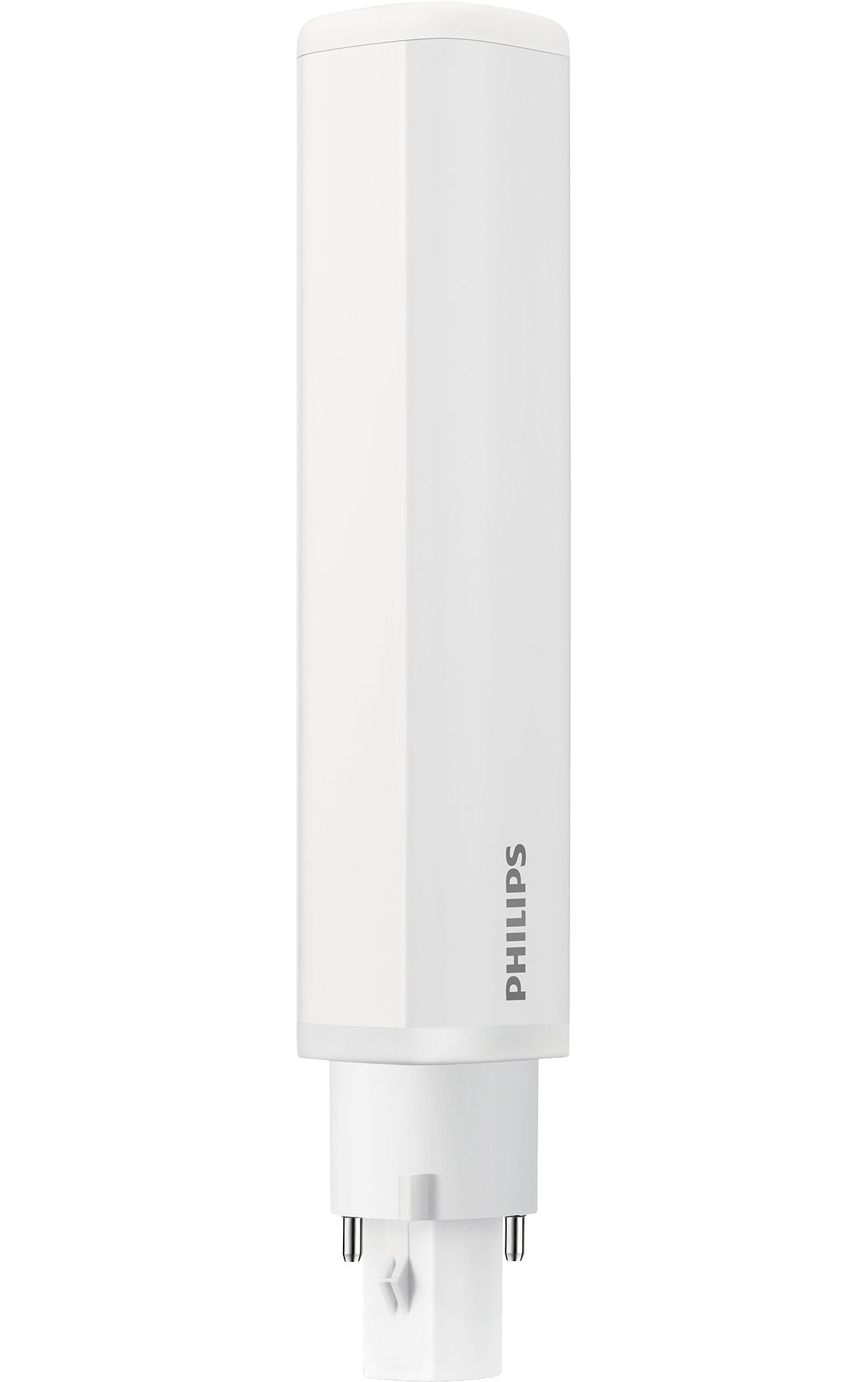

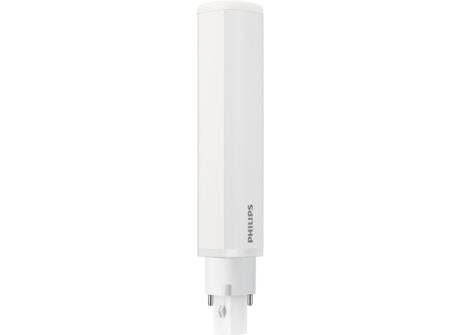

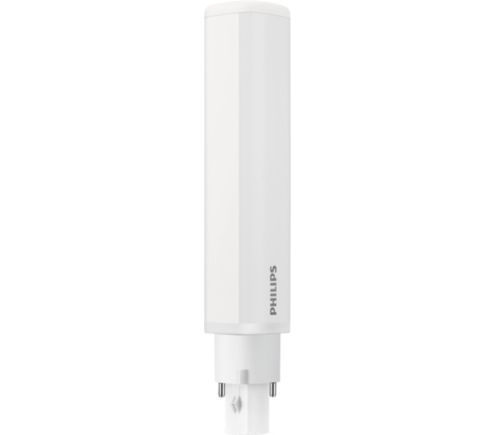

      CorePro LED PLC 8.5W 840 2P G24d-3

      Order code: 367011

      Downloads

      Spec Sheet
      Size:583.9 kB

      See all downloads

    Specifications Show all

    General information
    Base
    G24D-3  [ G24d-3]
    CE mark
    Yes
    EU RoHS compliant
    Yes
    Nominal Lifetime (Nom)
    30000 h
    Switching Cycle
    50000
    Flux measurement reference
    Sphere
    Tier
    CorePro
    Light technical
    Color Code
    841  [ CCT of 4100K (841)]
    Beam Angle (Nom)
    120 °
    Initial lumen (Nom)
    1000 lm
    Color Designation
    Cool White (CW)
    Correlated Color Temperature (Nom)
    4000 K
    Luminous Efficacy (rated) (Nom)
    105.88 lm/W
    Color Consistency
    <6
    Color Rendering Index (Nom)
    83
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Operating and electrical
    Input Frequency
    50 to 60 Hz
    Power (Rated) (Nom)
    8.5 W
    Lamp Current (Max)
    43 mA
    Lamp Current (Min)
    33 mA
    Starting Time (Nom)
    0.5 s
    Warm Up Time to 60% Light (Nom)
    0.5 s
    Power Factor (Nom)
    0.9
    Voltage (Nom)
    220-240 V
    Temperature
    T-Ambient (Max)
    95 °F
    T-Ambient (Min)
    -4 °F
    T-Storage (Range)
    -40 °C to 65 °C
    T-Storage (Max)
    149 °F
    T-Storage (Min)
    -40 °F
    T-Case Maximum (Nom)
    167 °F
    Controls and dimming
    Dimmable
    No
    Mechanical and housing
    Bulb Material
    Plastic
    Product Length
    7-7/8 in
    Bulb Shape
    Tube, single-ended
    Approval and application
    Energy Efficiency Class
    F
    Energy Saving Product
    Yes
    Approbation Marks
    TUV
    CE marking
    RoHS compliance
    KEMA Keur certificate
    Energy Consumption kWh/1000 h
    9 kWh
    EPREL Registration Number
    403555
    Application conditions
    Ambient temperature range
    -20 °C to 35 °C
    Product data
    Order product name
    CorePro LED PLC 8.5W 840 2P G24d-3
    EAN/UPC - Product
    8718696541258
    Order code
    367011
    Numerator - Quantity Per Pack
    1
    Local code description
    CorePro LED PLC 8.5W 840 2P G24d-3
    Numerator - Packs per outer box
    10
    Material Nr. (12NC)
    929001201302
    Net Weight (Piece)
    0.198 lb

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    G24d-3, 2P
    G24d-3, 2P
    G24d-3
    G24d-3
    Performance Diagrams
    LEDtube PLC 100mm 9W G24D-3 830 950lm
    LEDtube PLC 100mm 9W G24D-3 830 950lm
    LEDtube PLC 100mm 9W G24D-3 830 950lm
    LEDtube PLC 100mm 9W G24D-3 830 950lm
    LEDtube PLC 100mm 9W G24D-3 830 950lm
    LEDtube PLC 100mm 9W G24D-3 830 950lm
    LEDtube PLC 100mm 9W G24D-3 830 950lm
    LEDtube PLC 100mm 9W G24D-3 830 950lm
    LEDtube PLC 100mm 9W G24D-3 830 950lm
    LEDtube PLC 100mm 9W G24D-3 830 950lm
    Photometrics
    LEDtube PLC 100mm 9W G24D-3 840 1000lm
    LEDtube PLC 100mm 9W G24D-3 840 1000lm
    LEDtube PLC 100mm 9W G24Q-3 840 1000lm
    LEDtube PLC 100mm 9W G24Q-3 840 1000lm
    Downloads
    Leaflets
    Green Data
    Visuals
    Brochures
    Photometry/BIM Files
    • IES LEDtube PLC 100mm 9W G24D-3 840 1000lm IES 4.6 kB
