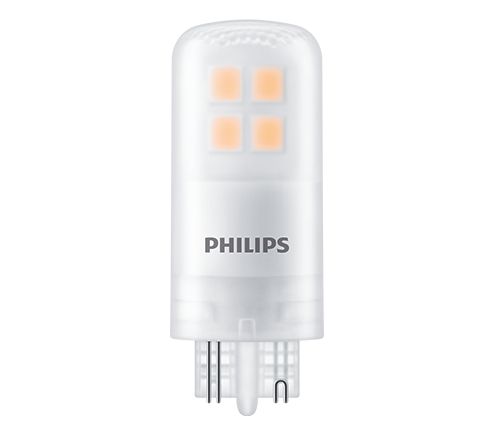

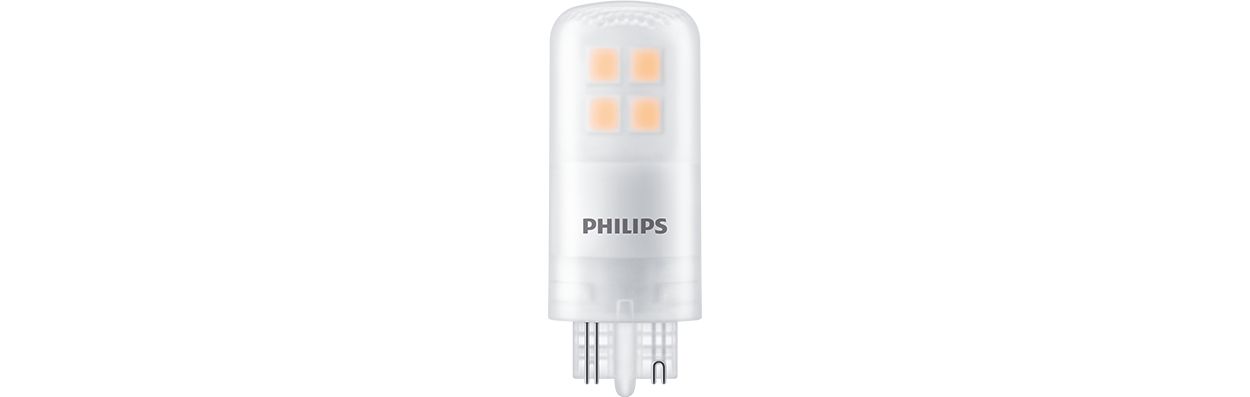

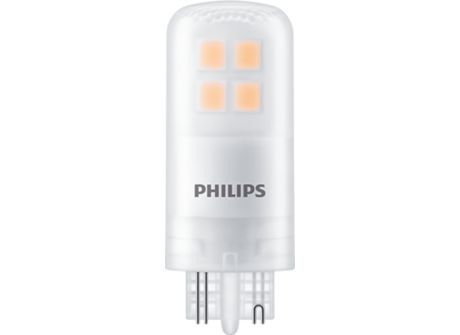

      2T5/LED/830/ND/12V/BC/2PK 6/2
      LED
      2T5/LED/830/ND/12V/BC/2PK 6/2

      2T5/LED/830/ND/12V/BC/2PK 6/2

      Order code: 475418

      Downloads

      Spec Sheet
      Size:693.8 kB

      See all downloads

    Specifications Show all

    General Information
    Base
    Wedgebase
    EU RoHS compliant
    Yes
    Nominal Lifetime (Nom)
    15000 h
    Switching Cycle
    50000X
    Technical Type
    2-18W
    Light Technical
    Color Code
    830  [ CCT of 3000K]
    Initial lumen (Nom)
    200 lm
    Color Designation
    White (WH)
    Correlated Color Temperature (Nom)
    3000 K
    Luminous Efficacy (rated) (Nom)
    100.00 lm/W
    Color Consistency
    <6
    Color Rendering Index (Nom)
    80
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Operating and Electrical
    Input Frequency
    - Hz
    Power (Rated) (Nom)
    2 W
    Lamp Current (Nom)
    260 mA
    Wattage Equivalent
    18 W
    Starting Time (Nom)
    0.5 s
    Warm Up Time to 60% Light (Nom)
    0.5 s
    Power Factor (Nom)
    0.6
    Voltage (Nom)
    ac electronic 12 V
    Temperature
    T-Case Maximum (Nom)
    80 °C
    Controls and Dimming
    Dimmable
    No
    Approval and Application
    Energy Efficiency Label (EEL)
    A++
    Suitable For Accent Lighting
    No
    Energy Consumption kWh/1000 h
    3 kWh
    Product Data
    Order product name
    2T5/LED/830/ND/12V/BC/2PK 6/2
    EAN/UPC - Product
    50046677475418
    Order code
    475418
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    6
    Material Nr. (12NC)
    929002389636
    Net Weight (Piece)
    0.008 kg

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     Wedgebase Capsule
    Wedgebase Capsule
    Performance Diagrams
    15K LMP
    15K LMP
    15K LED
    15K LED
    Photometrics
    LEDcapsule 2W Wedgebase 830
    LEDcapsule 2W Wedgebase 830
    LEDcapsule 2W Wedgebase 830
    LEDcapsule 2W Wedgebase 830
    LEDcapsule 2W Wedgebase
    LEDcapsule 2W Wedgebase
    Downloads
    Leaflets
    Green Data
    Visuals
    Photometry/BIM Files
    • IES LEDcapsule 2W Wedgebase 830 IES 8.7 kB
