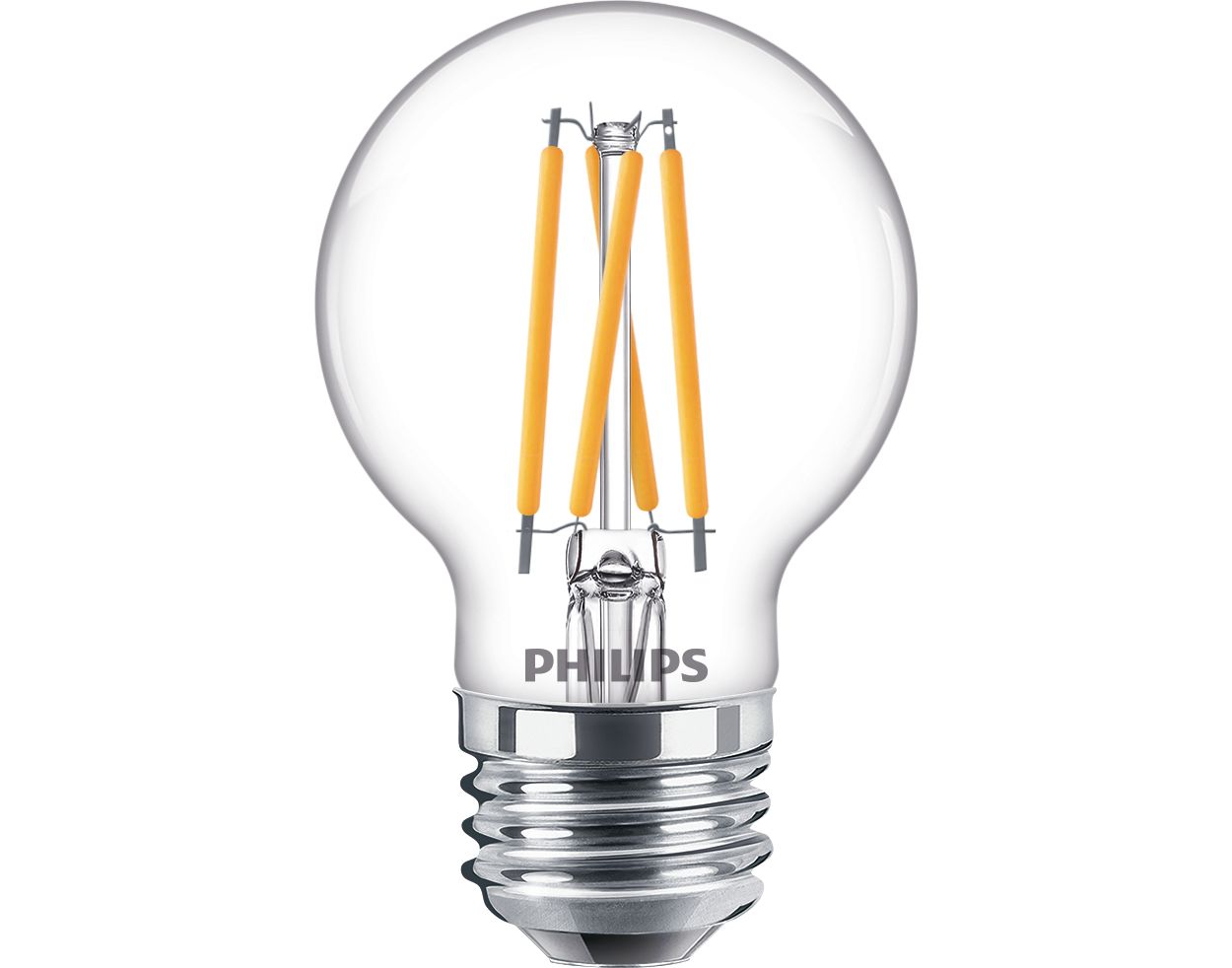

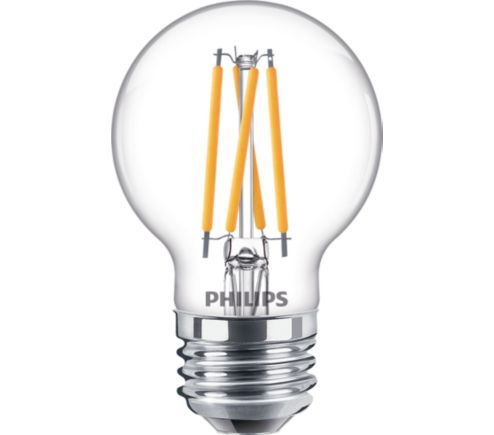

3.8G16.5/PER/927-922/CL/G/E26/WGX 1FBT20

Specifications Show all

Operating and Electrical

Lamp Current (Nom)	40 mA
Warm-up time to 60% light	0.5 s
Voltage (Nom)	120 V
Wattage Equivalent	40 W
Line Frequency	50 to 60 Hz
Power Consumption	3.8 W
Starting Time (Nom)	0.5 s
Power Factor (Fraction)	0.75
Input Frequency	50 to 60 Hz

Approval and Application

Energy Consumption kWh/1000 h	- kWh
Energy Certifications	Energy Star
EU RoHS compliant	Yes

Product Data

Full product name	3.8G16.5/PER/927-922/CL/G/E26/WGX 1FBT20
EAN/UPC - Case	50046677549270
Order code	549279
Material number (12NC)	929002205004
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	10
Order product name	3.8G16.5/PER/927-922/CL/G/E26/WGX 1FBT20

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Bulb Shape	G16.5  [G16.5]
Bulb Material	Glass
Bulb Finish	Clear

General Information

Cap-Base	E26  [Single Contact Medium Screw]
Switching Cycle	20,000
Rated Lifetime (Hours)	15,000 hour(s)
Nominal lifetime	15,000 hour(s)
Lighting Technology	LED

Temperature

T-Case Maximum (Nom)

122 °F

Light Technical

Luminous Flux	350 lumen
Luminous Efficacy (rated) (Nom)	92.00 lm/W
Color rendering index (CRI)	90
Correlated Color Temperature (Nom)	2700 K	2200 K
Color Designation	Warm Glow(WG)
Color Consistency	<4
Color Code	927-922  [CCT of 2700K-2200K]
LLMF At End Of Nominal Lifetime (Nom)	70 %
