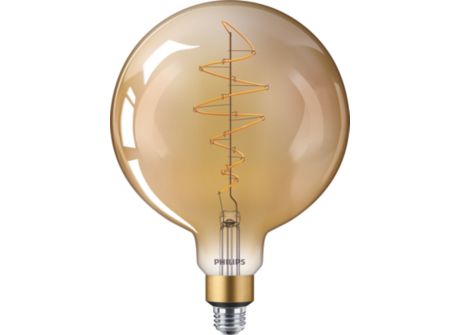

7.5G63/VIN/820/CL/G/E26/amber/SP/DIM 1CT

Specifications Show all

Operating and Electrical

Warm-up time to 60% light	0.5 s
Lamp Current (Nom)	70 mA
Voltage (Nom)	120 V
Wattage Equivalent	40 W
Line Frequency	50 to 60 Hz
Power Consumption	7.5 W
Starting Time (Nom)	0.5 s
Power Factor (Fraction)	0.7
Input Frequency	50 to 60 Hz

Approval and Application

EU RoHS compliant

Yes

Product Data

Full product name	7.5G63/VIN/820/CL/G/E26/amber/SP/DIM 1CT
Order code	575225
EAN/UPC - Case	50046677575224
Material number (12NC)	929001936313
Numerator - Quantity Per Pack	1
Order product name	7.5G63/VIN/820/CL/G/E26/amber/SP/DIM 1CT
Numerator - Packs per outer box	2

Controls and Dimming

Dimmable

Only with specific dimmers

General Information

Cap-Base	E26  [Single Contact Medium Screw]
Switching Cycle	20,000
Rated Lifetime (Hours)	15,000 hour(s)
Nominal lifetime	15,000 hour(s)
Lighting Technology	LED

Mechanical and Housing

Bulb Shape	G63  [G 63 inch]
Bulb Material	Glass
Bulb Finish	Amber

Temperature

Ambient temperature range	-20 °C to 40 °C
T-Case Maximum (Nom)	113 °F

Light Technical

Luminous Flux	400 lumen
Color Code	820  [CCT of 2000K]
Luminous Efficacy (rated) (Nom)	53 lm/W
Color rendering index (CRI)	80
Correlated Color Temperature (Nom)	2000 K
Color Designation	Flame
Color Consistency	<6
Color Code	820  [CCT of 2000K]
Beam Angle (Nom)	330 degree(s)
LLMF At End Of Nominal Lifetime (Nom)	70 %
