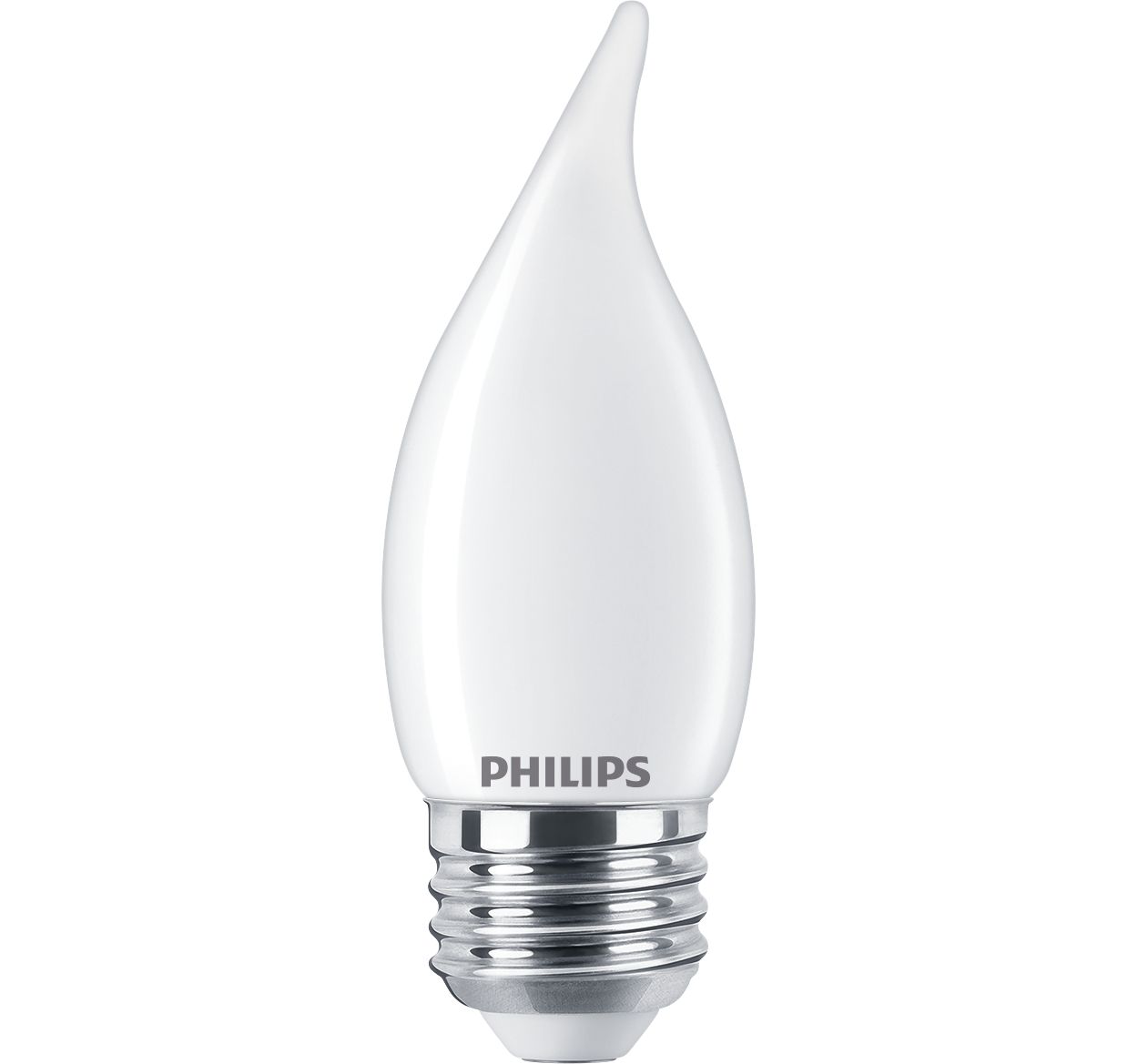

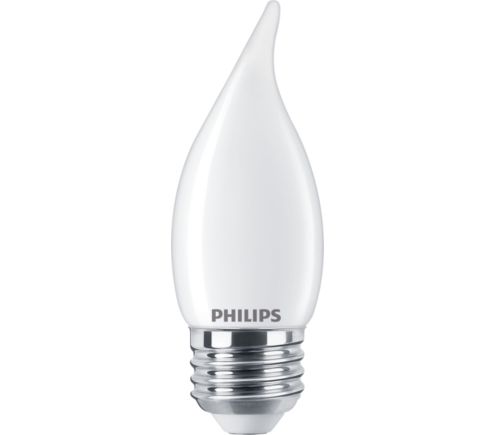

5BA11/PER/CRI95WG/FR/G/E26/WGD 1CT T20

Specifications Show all

Operating and Electrical

Warm-up time to 60% light	0.5 s
Lamp Current (Nom)	55 mA
Voltage (Nom)	120 V
Power Factor (Fraction)	0.7
Wattage Equivalent	60 W
Starting Time (Nom)	0.5 s
Line Frequency	60 Hz
Power Consumption	5 W
Input Frequency	60 Hz

Approval and Application

EU RoHS compliant

Yes

Product Data

Full product name	5BA11/PER/CRI95WG/FR/G/E26/WGD 1CT T20
EAN/UPC - Case	50046677575187
Order product name	5BA11/PER/CRI95WG/FR/G/E26/WGD 1CT T20
Order code	575183
Numerator - Packs per outer box	10
Material number (12NC)	929003082404
Numerator - Quantity Per Pack	1

Controls and Dimming

Dimmable

Only with specific dimmers

Mechanical and Housing

Bulb Shape	BA11  [BA11 35mm]
Bulb Finish	Frosted
Bulb Material	Glass

General Information

Cap-Base	E26  [Single Contact Medium Screw]
Switching Cycle	20,000
Lighting Technology	LED
Nominal lifetime	15,000 hour(s)

Light Technical

Luminous Flux	500 lumen
Luminous Efficacy (rated) (Nom)	100.00 lm/W
Color rendering index (CRI)	95
Correlated Color Temperature (Nom)	2700 K	2200 K
Beam Angle (Nom)	300 degree(s)
LLMF At End Of Nominal Lifetime (Nom)	70 %
Color Designation	Warm Glow(WG)
Color Consistency	<4
Color Code	927-922  [CCT of 2700K-2200K]
