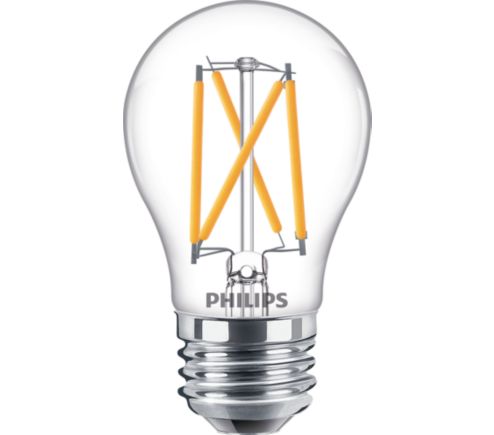

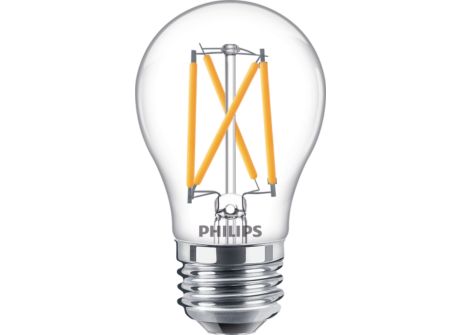

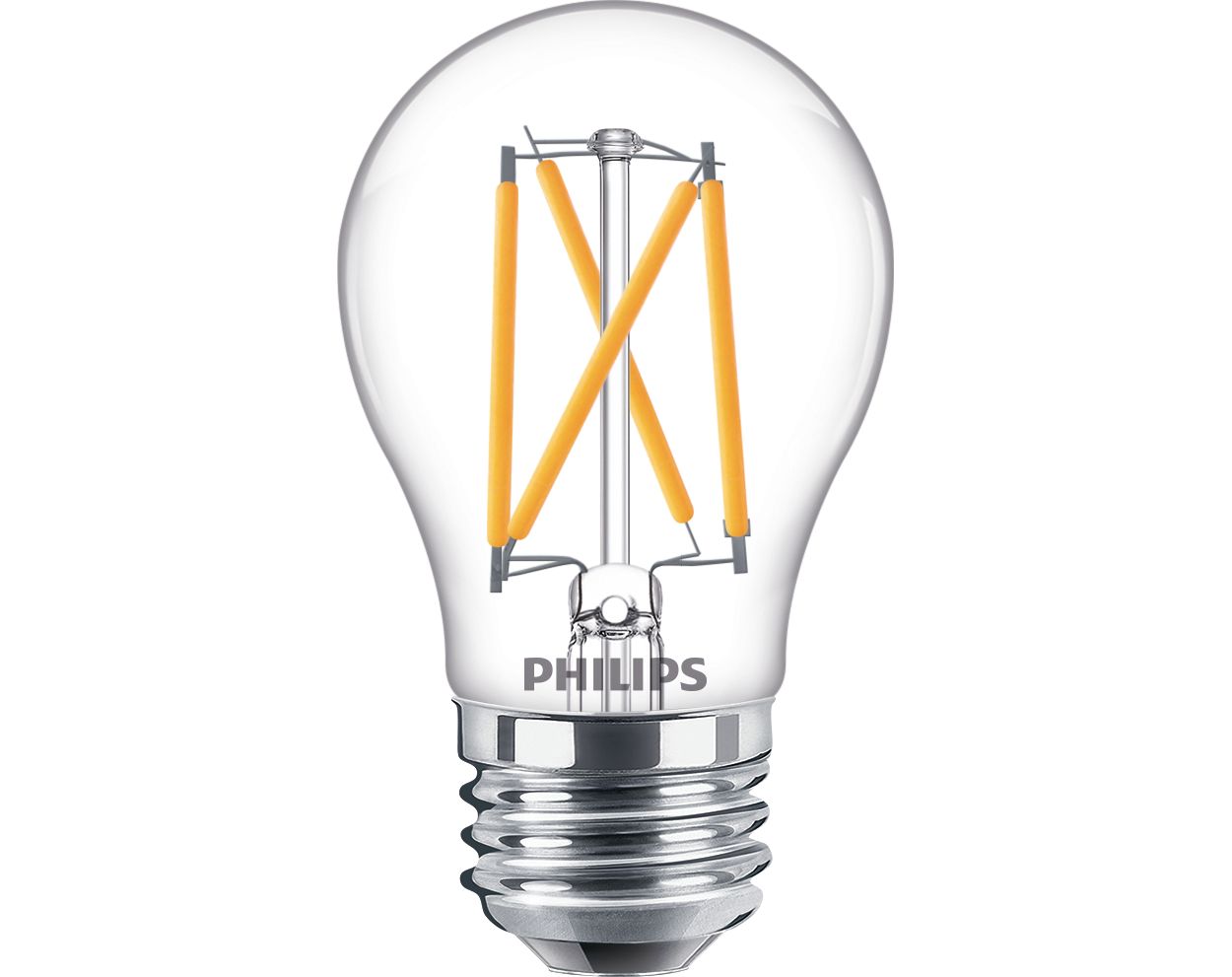

3.8A15/PER/927-922/CL/G/E26/WGX1FB T20

Specifications Show all

Operating and Electrical

Warm-up time to 60% light	0.5 s
Lamp Current (Nom)	42 mA
Voltage (Nom)	120 V
Power Factor (Fraction)	0.75
Wattage Equivalent	40 W
Line Frequency	50 to 60 Hz
Power Consumption	3.8 W
Starting Time (Nom)	0.5 s
Input Frequency	50 to 60 Hz

Approval and Application

Energy Consumption kWh/1000 h	- kWh
Energy Certifications	No
EU RoHS compliant	Yes

Product Data

Full product name	3.8A15/PER/927-922/CL/G/E26/WGX1FB T20
EAN/UPC - Case	50046677549386
Order code	549386
Material number (12NC)	929002208304
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	10
Order product name	3.8A15/PER/927-922/CL/G/E26/WGX1FB T20

Controls and Dimming

Dimmable

Yes

General Information

Cap-Base	E26  [Single Contact Medium Screw]
Switching Cycle	20,000
Rated Lifetime (Hours)	15,000 hour(s)
Nominal lifetime	15,000 hour(s)
Lighting Technology	LED

Mechanical and Housing

Bulb Shape	A15  [A 15mm]
Bulb Material	Glass
Bulb Finish	Clear

Temperature

T-Case Maximum (Nom)

122 °F

Light Technical

Luminous Flux	350 lumen
Luminous Efficacy (rated) (Nom)	92.00 lm/W
Color rendering index (CRI)	90
Correlated Color Temperature (Nom)	2700 K	2200 K
Color Designation	Warm Glow(WG)
Color Consistency	<4
Color Code	927-922  [CCT of 2700K-2200K]
LLMF At End Of Nominal Lifetime (Nom)	70 %
