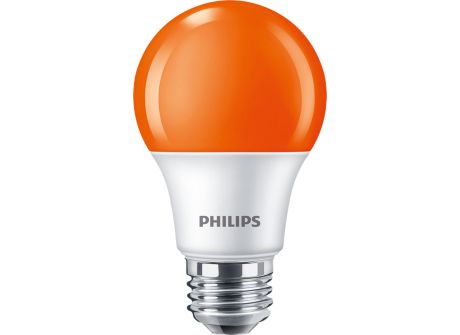

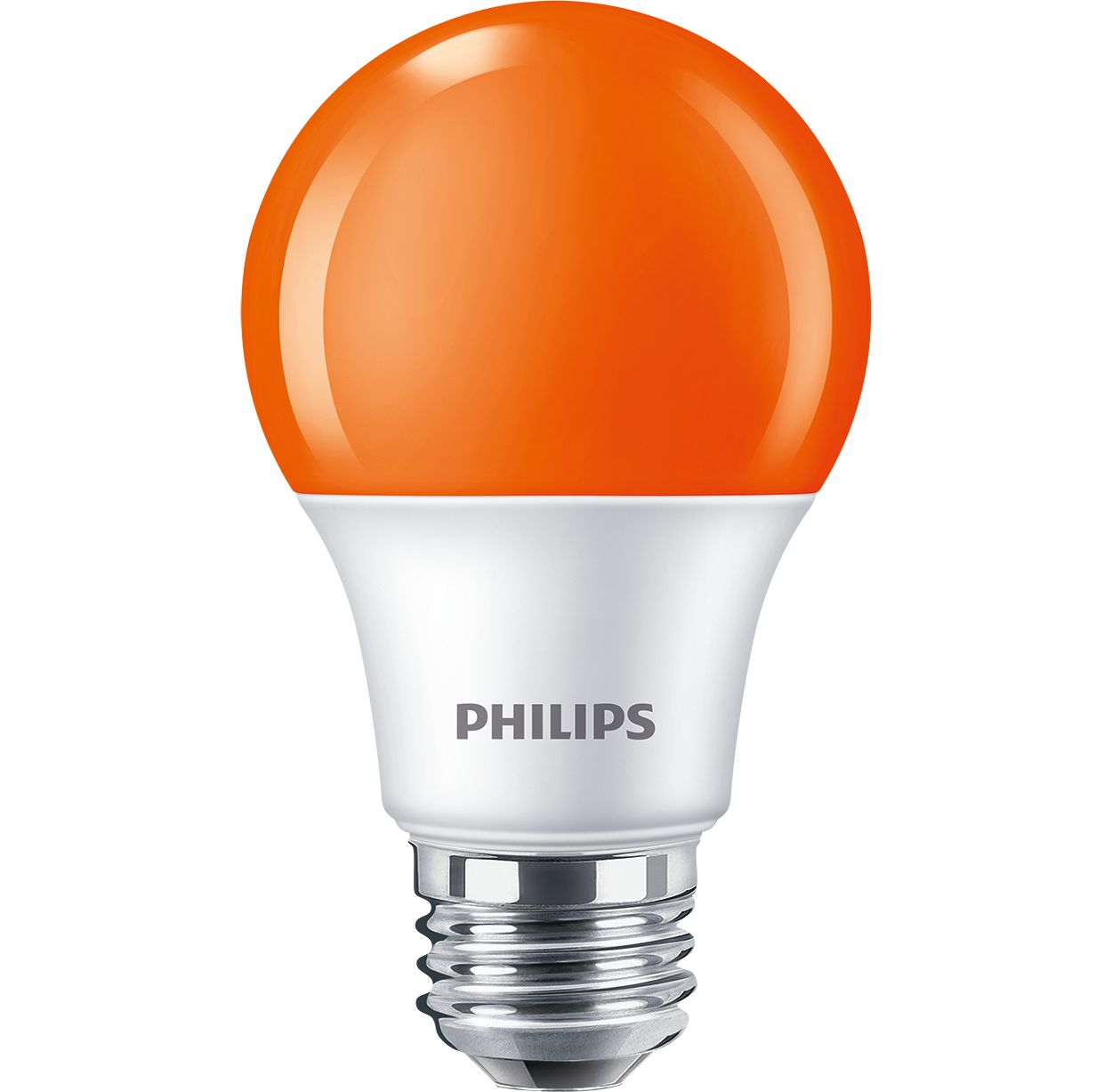

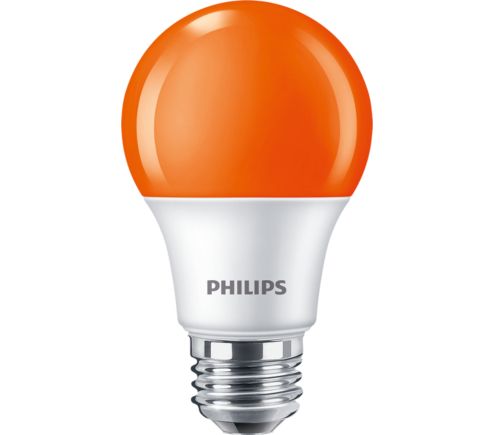

8A19/LED/ORANGE/P/ND 120V 4/1FB

Specifications Show all

General information

Base	E26  [ Single Contact Medium Screw]
EU RoHS compliant	Yes
Nominal Lifetime (Nom)	10950 h
Switching Cycle	20000
Tier	CorePro

Light technical

Beam Angle (Nom)	160 °
LLMF At End Of Nominal Lifetime (Nom)	70 %

Operating and electrical

Input Frequency	60 Hz
Power (Rated) (Nom)	8 W
Lamp Current (Nom)	115 mA
Starting Time (Nom)	0.5 s
Warm Up Time to 60% Light (Nom)	0.5 s
Power Factor (Nom)	0.5
Voltage (Nom)	120 V

Temperature

T-Ambient (Max)	113 °F
T-Ambient (Min)	-4 °F
T-Case Maximum (Nom)	176 °F

Controls and dimming

Dimmable

No

Mechanical and housing

Bulb Finish	Orange
Bulb Material	Plastic
Bulb Shape	A19 (A19)

Application conditions

Ambient temperature range

-20 °C to 45 °C

Product data

Order product name	8A19/LED/ORANGE/P/ND 120V 4/1FB
EAN/UPC - Product	046677580438
Order code	580431
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	4
Material Nr. (12NC)	929001998213
Net Weight (Piece)	0.062 lb
