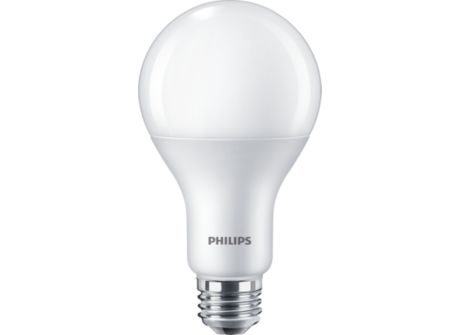

18A21/LED/950/P/E26/ND 4/2FB T20

Specifications Show all

General Information

Base	E26  [ Single Contact Medium Screw]
EU RoHS compliant	Yes
Nominal Lifetime (Nom)	10950 h
Switching Cycle	50000X
Technical Type	18-100W

Light Technical

Color Code	950  [ CCT of 5000K]
Beam Angle (Nom)	250 °
Initial lumen (Nom)	1500 lm
Color Designation	Daylight
Correlated Color Temperature (Nom)	5000 K
Luminous Efficacy (rated) (Nom)	83.00 lm/W
Color Consistency	<4
Color Rendering Index (Nom)	90
LLMF At End Of Nominal Lifetime (Nom)	70 %

Operating and Electrical

Input Frequency	60 Hz
Power (Rated) (Nom)	18 W
Lamp Current (Nom)	160 mA
Wattage Equivalent	100 W
Starting Time (Nom)	0.5 s
Warm Up Time to 60% Light (Nom)	0.5 s
Power Factor (Nom)	0.7
Voltage (Nom)	120 V

Temperature

T-Case Maximum (Nom)

75 °C

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Finish

Frosted

Approval and Application

Energy Efficiency Label (EEL)	Not applicable
Energy Consumption kWh/1000 h	- kWh

Product Data

Order product name	18A21/LED/950/P/E26/ND 4/2FB T20
EAN/UPC - Product	50046677531763
Order code	531764
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	4
Material Nr. (12NC)	929001860223
Net Weight (Piece)	0.100 kg
