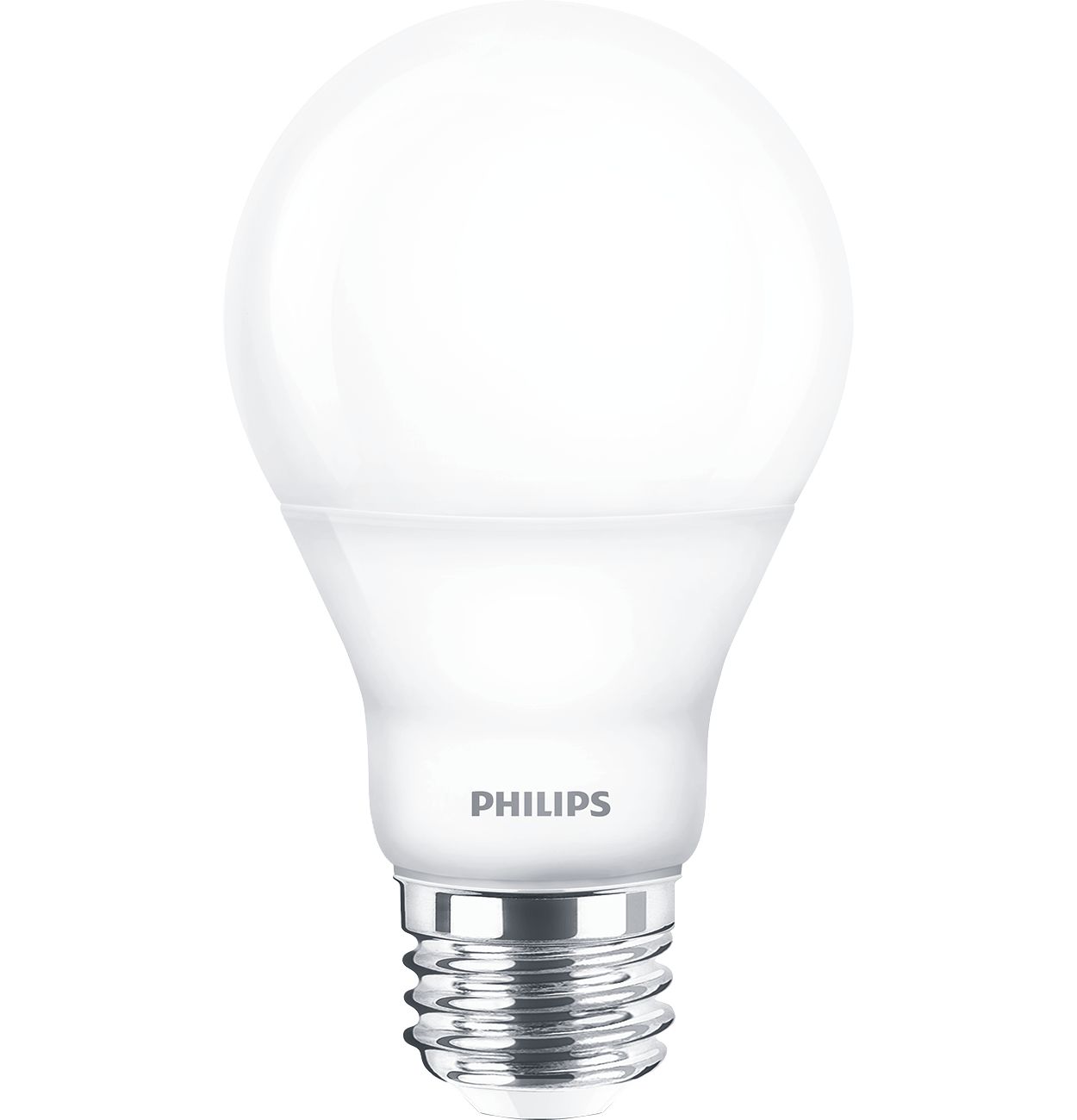

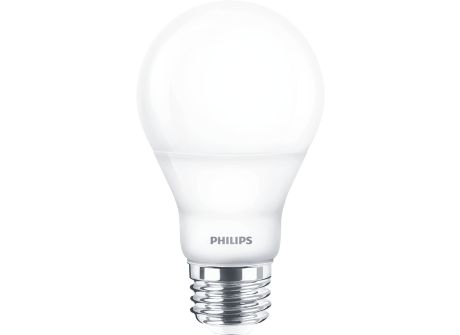

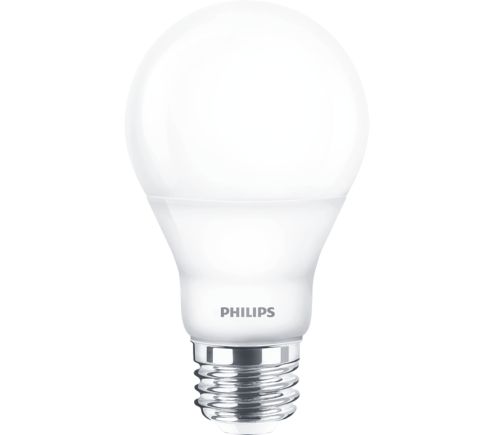

BC10A19/AMB/927/DIM 120V 4/1

Specifications Show all

General Information

Base	E26  [ Single Contact Medium Screw]
EU RoHS compliant	Yes
Nominal Lifetime (Nom)	25000 h
Switching Cycle	50000X
Technical Type	10–60 W

Light Technical

Color Code	927
Initial lumen (Nom)	800 lm
Color Designation	Warm White (WW)
Correlated Color Temperature (Nom)	2700 K
Luminous Efficacy (rated) (Nom)	80.00 lm/W
Color Consistency	<4
Color Rendering Index (Nom)	90
LLMF At End Of Nominal Lifetime (Nom)	70 %

Operating and Electrical

Input Frequency	60 Hz
Power (Rated) (Nom)	10 W
Lamp Current (Nom)	100 mA
Wattage Equivalent	60 W
Starting Time (Nom)	0.5 s
Warm Up Time to 60% Light (Nom)	0.5 s
Power Factor (Nom)	0.9
Voltage (Nom)	120 V

Temperature

T-Case Maximum (Nom)

85 °C

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Bulb Finish

Frosted

Approval and Application

Suitable For Accent Lighting

No

Product Data

Order product name	BC10A19/AMB/927/DIM 120V
EAN/UPC - Product	046677465186
Order code	465187
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	4
Material Nr. (12NC)	929001263303
Net Weight (Piece)	0.130 kg
