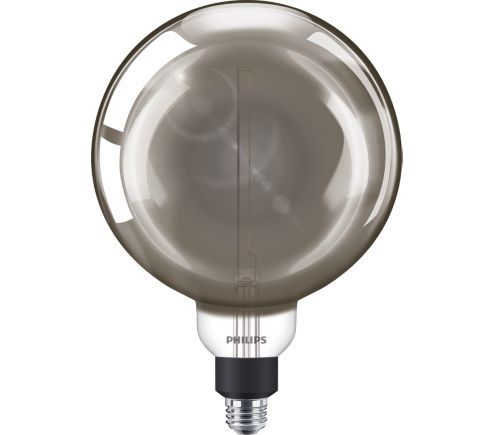

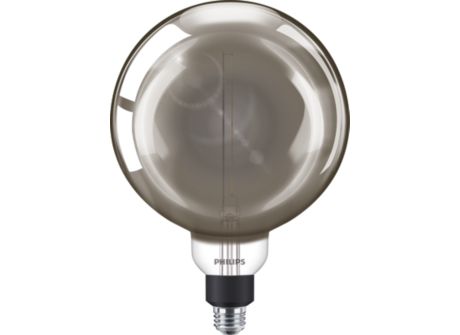

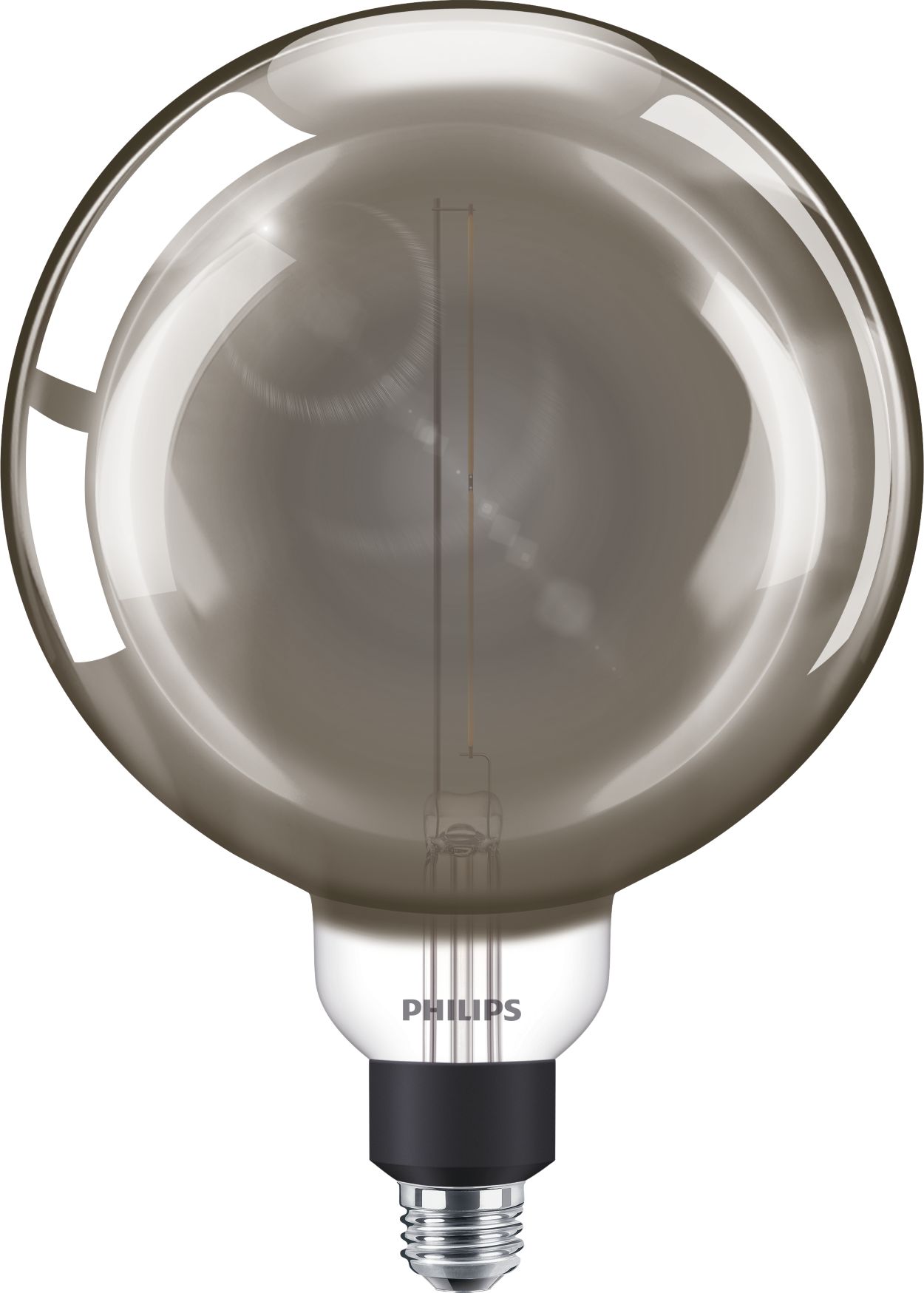

7.5G63/modern/840/CL/G/DIM 1FFP

Specifications Show all

General Information

Base	E26  [ Single Contact Medium Screw]
EU RoHS compliant	Yes
Nominal Lifetime (Nom)	15000 h
Switching Cycle	20000X
Technical Type	7.5-25W

Light Technical

Color Code	841  [ CCT of 4100K (841)]
Initial lumen (Nom)	250 lm
Color Designation	Cool White (CW)
Correlated Color Temperature (Nom)	4000 K
Luminous Efficacy (rated) (Nom)	33.00 lm/W
Color Consistency	<6
Color Rendering Index (Nom)	80
LLMF At End Of Nominal Lifetime (Nom)	70 %

Operating and Electrical

Input Frequency	50 to 60 Hz
Power (Rated) (Nom)	7.5 W
Lamp Current (Nom)	70 mA
Wattage Equivalent	25 W
Starting Time (Nom)	0.5 s
Warm Up Time to 60% Light (Nom)	0.5 s
Power Factor (Nom)	0.7
Voltage (Nom)	120 V

Temperature

T-Case Maximum (Nom)

45 °C

Controls and Dimming

Dimmable

Yes

Product Data

Order product name	7.5G63/modern/840/CL/G/DIM 1FFP
EAN/UPC - Product	046677538958
Order code	538958
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	1
Material Nr. (12NC)	929001936673
Net Weight (Piece)	0.360 kg
