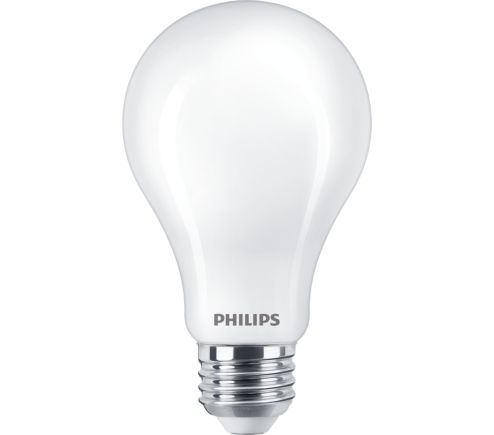

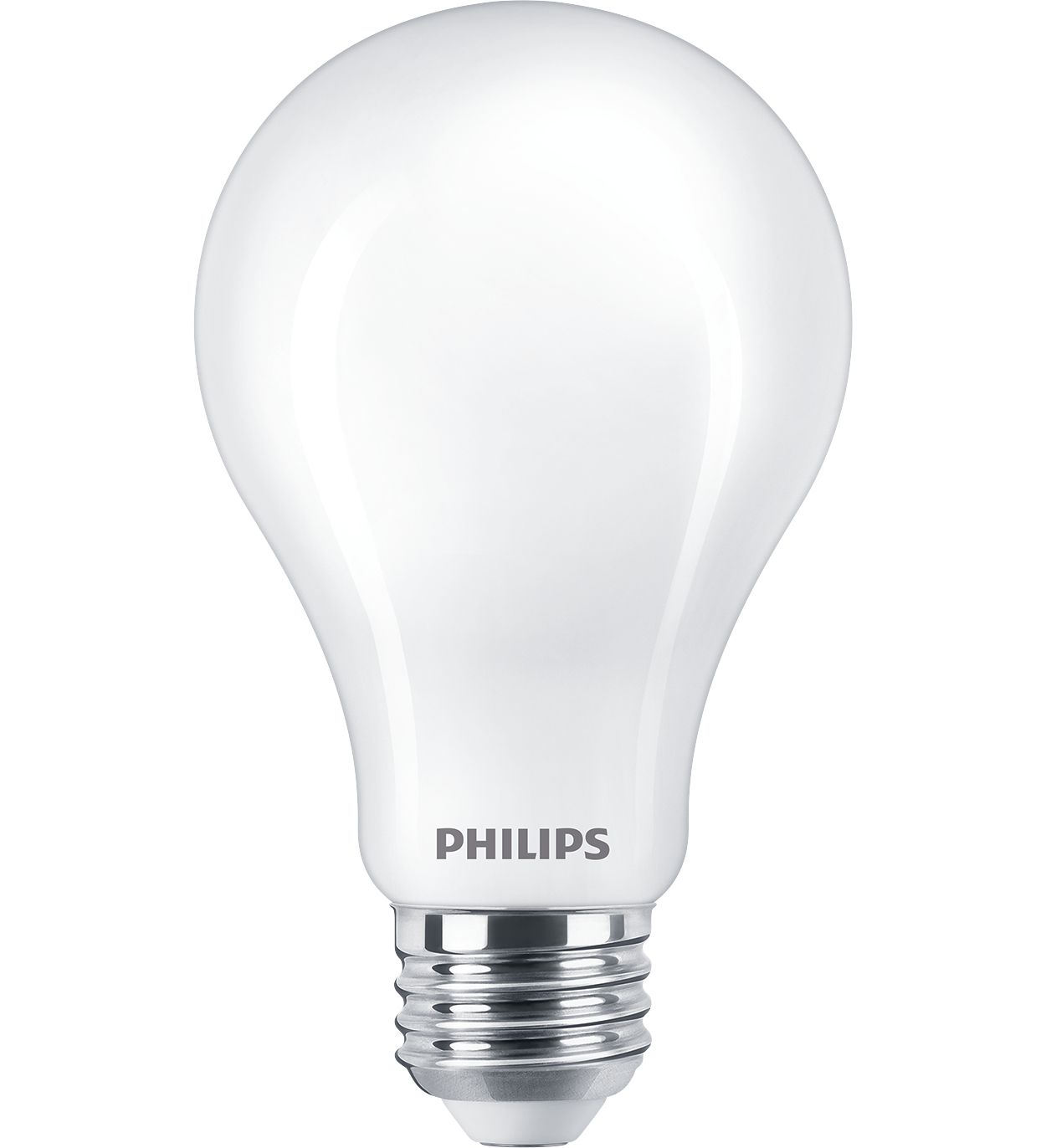

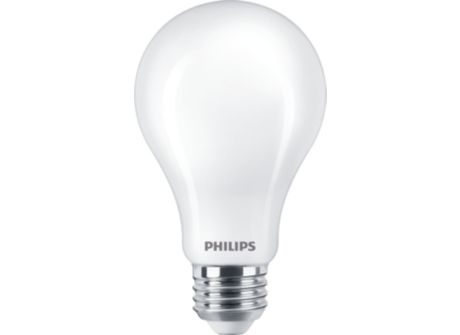

12A19/LED/950/FR/Glass/E26/DIM 1FB T20

Specifications Show all

Operating and Electrical

Lamp Current (Nom)	105 mA
Warm-up time to 60% light	0.5 s
Voltage (Nom)	120 V
Power Factor (Fraction)	0.7
Wattage Equivalent	100 W
Starting Time (Nom)	0.5 s
Line Frequency	60 Hz
Power Consumption	12 W
Input Frequency	60 Hz

Approval and Application

Energy Certifications	Energy Star
EU RoHS compliant	Yes

Product Data

Full product name	12A19/LED/950/FR/Glass/E26/DIM 1FB T20
EAN/UPC - Case	50046677578638
Order code	578633
Numerator - Packs per outer box	10
Material number (12NC)	929003498404
Numerator - Quantity Per Pack	1
Order product name	12A19/LED/950/FR/Glass/E26/DIM 1FB T20

Controls and Dimming

Dimmable

Only with specific dimmers

Mechanical and Housing

Bulb Shape	A19  [A 19mm]
Bulb Finish	Frosted
Bulb Material	Glass

General Information

Cap-Base	E26  [Single Contact Medium Screw]
Switching Cycle	20,000
Lighting Technology	LED
Nominal lifetime	15,000 hour(s)

Temperature

Ambient temperature range

-20 °C to 45 °C

Light Technical

Luminous Flux	1,600 lumen
Luminous Efficacy (rated) (Nom)	133.00 lm/W
Color rendering index (CRI)	90
Correlated Color Temperature (Nom)	5000 K
Beam Angle (Nom)	320 degree(s)
Color Designation	Daylight
LLMF At End Of Nominal Lifetime (Nom)	70 %
Color Consistency	<4
Color Code	950  [CCT of 5000K]
