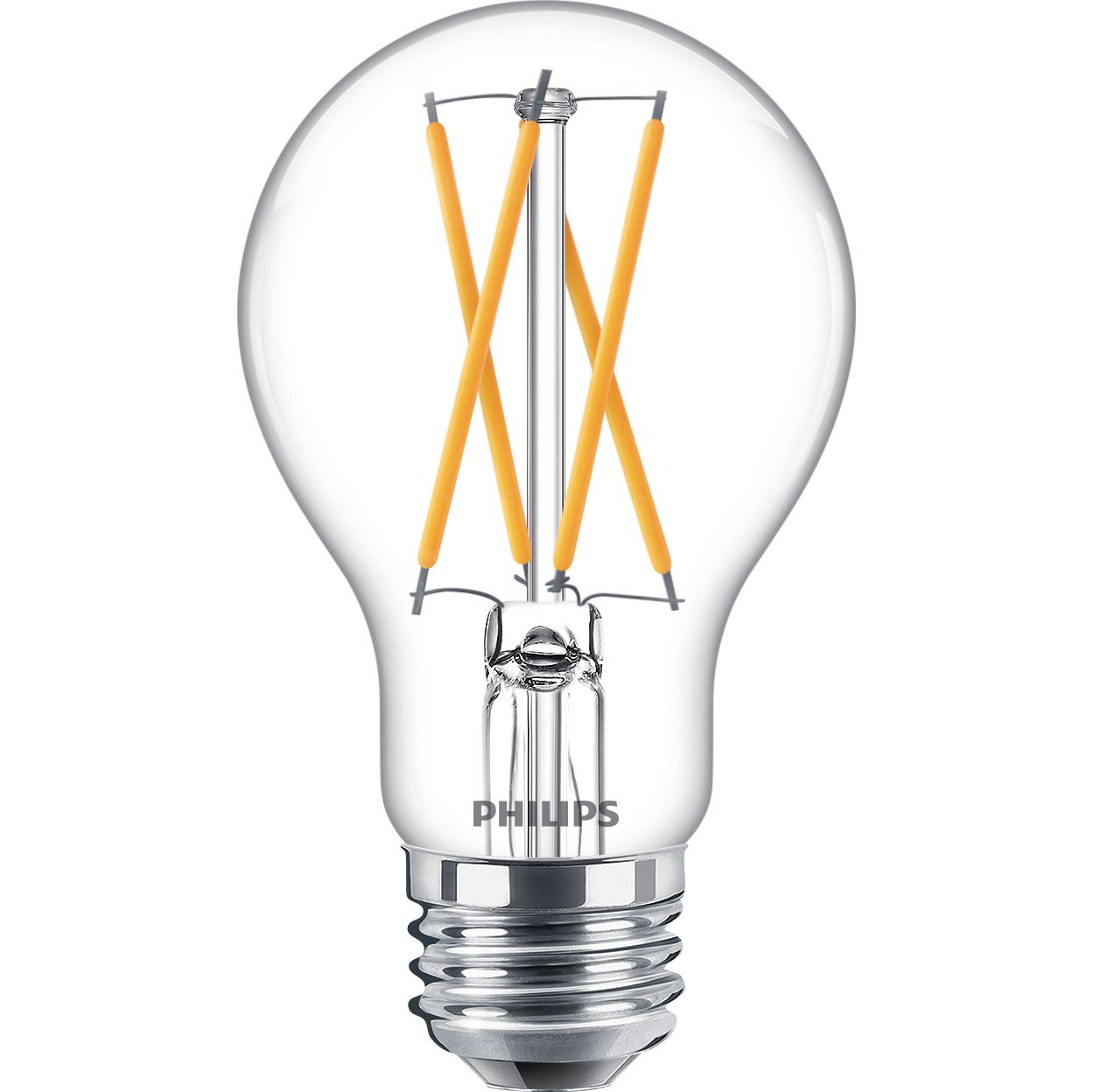

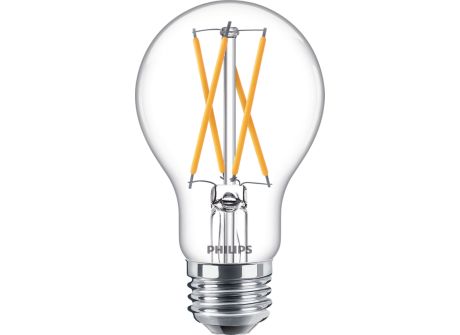

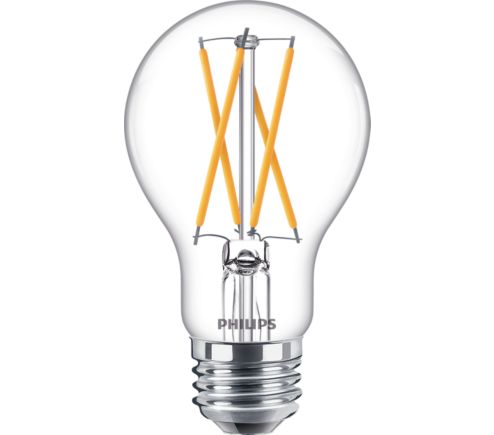

5A19/PER/927-922/CL/G/E26/WGX 1FB T20

Specifications Show all

General information

Base	E26  [ Single Contact Medium Screw]
EU RoHS compliant	Yes
Nominal Lifetime (Nom)	15000 h
Switching Cycle	20000X

Light technical

Color Code	927-922  [ CCT of 2700K-2200K]
Beam Angle (Nom)	300 °
Initial lumen (Nom)	450 lm
Color Designation	Warm Glow(WG)
Correlated Color Temperature (Nom)	2700 K	2200 K
Luminous Efficacy (rated) (Nom)	90.00 lm/W
Color Consistency	<4
Color Rendering Index (Nom)	90
LLMF At End Of Nominal Lifetime (Nom)	70 %

Operating and electrical

Input Frequency	50 to 60 Hz
Power (Rated) (Nom)	5 W
Lamp Current (Nom)	55 mA
Wattage Equivalent	40 W
Starting Time (Nom)	0.5 s
Warm Up Time to 60% Light (Nom)	0.5 s
Power Factor (Nom)	0.75
Voltage (Nom)	120 V

Temperature

T-Case Maximum (Nom)

122 °F

Controls and dimming

Dimmable

Yes

Mechanical and housing

Bulb Finish	Clear
Bulb Material	Glass
Bulb Shape	A19 (A19)

Approval and application

Energy Consumption kWh/1000 h	- kWh
Energy Certifications	Energy Star

Product data

Order product name	5A19/PER/927-922/CL/G/E26/WGX 1FB T20
EAN/UPC - Product	046677549480
Order code	549485
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	6
Material Nr. (12NC)	929001969504
Net Weight (Piece)	0.066 lb
