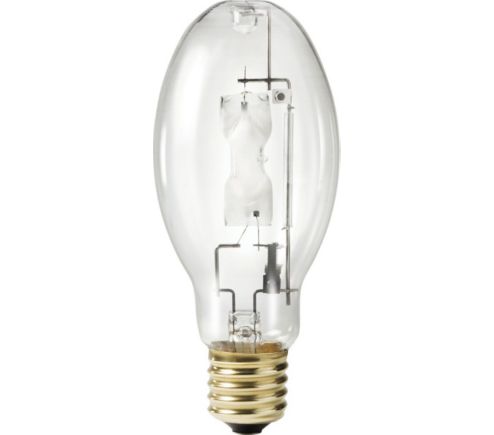

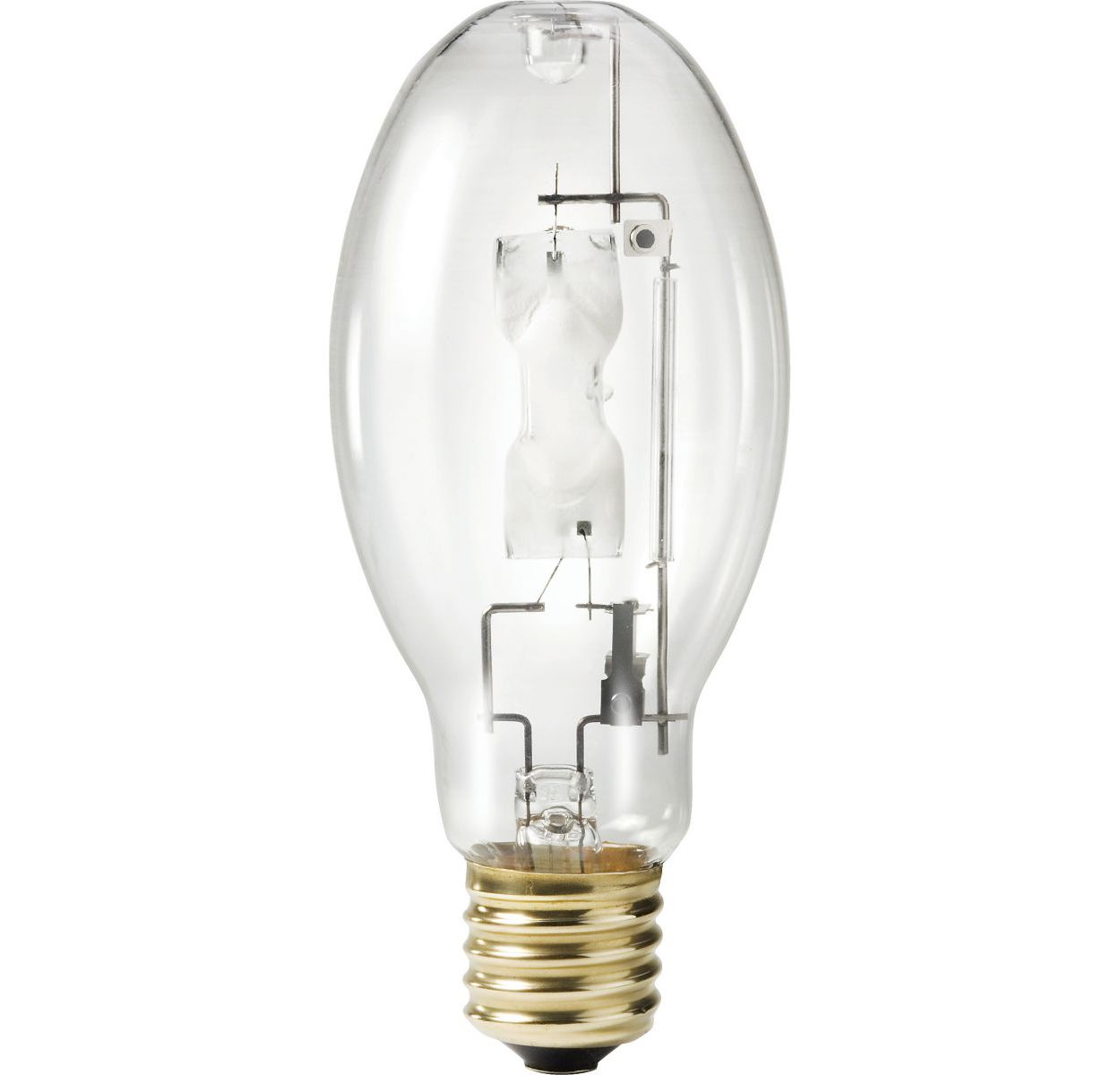

MH175/U UPC 3PK

Specifications Show all

Operating and Electrical

Lamp Current (Nom)	1.5 A
Voltage (Nom)	132 V
Voltage (Nom)	132 V

Approval and Application

Energy Saving Product	Not Applicable
Mercury (Hg) Content (Nom)	28 mg

Product Data

Full product name	MH175/U UPC 3PK
EAN/UPC - Case	50046677140859
Order product name	MH175/U UPC 3PK
Order code	140855
Numerator - Packs per outer box	3
Material number (12NC)	928601150312
Numerator - Quantity Per Pack	1

General Information

Cap-Base	E39  [Single Contact Mogul Screw]
Operating Position	UNIVERSAL  [Any or Universal (U)]

Mechanical and Housing

Bulb Shape	ED28
Bulb Finish	Clear
Bulb Material	Hard Glass

Light Technical

Chromaticity Coordinate Y (Nom)	0.400
Chromaticity Coordinate X (Nom)	0.375
Luminous Efficacy (Rated) (Min)	70 lm/W
Luminous Efficacy (rated) (Nom)	84 lm/W
Color rendering index (CRI)	65
Correlated Color Temperature (Nom)	4000 K
Color Designation	Cool White (CW)
Color Code	640  [CCT of 4000K]
