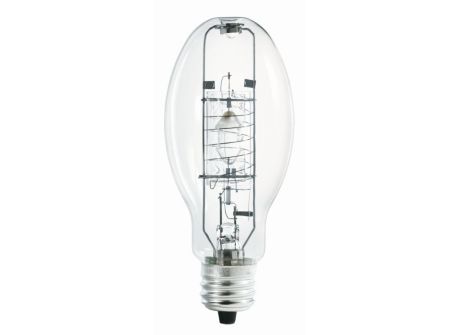

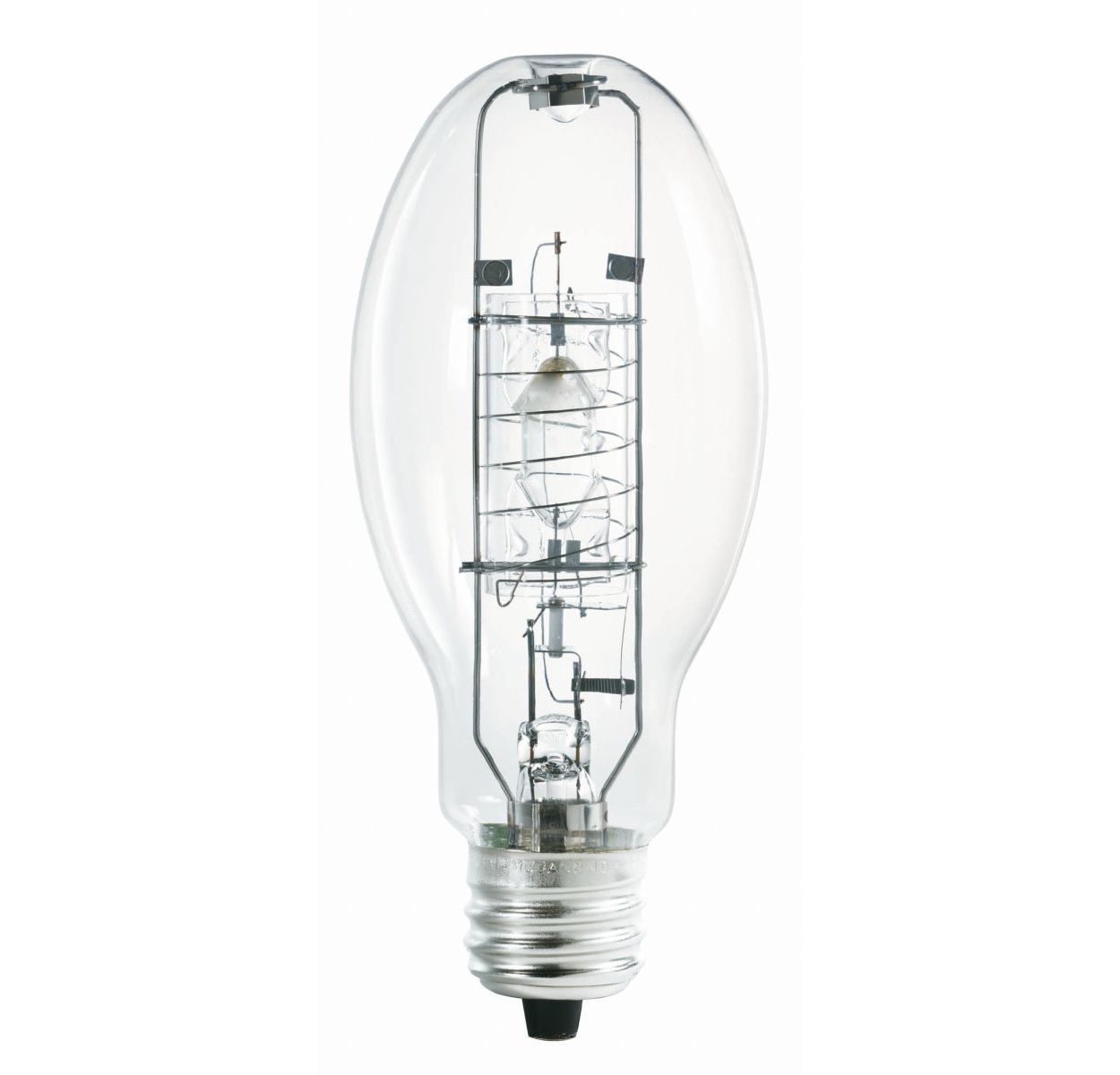

    • Switch Start Metal Halide Protected

      MP250/BU 12PK
      MP250/BU 12PK

      MP250/BU 12PK

      Order code: 281246

      Downloads

      Leaflet
      Size:164.2 kB

      See all downloads

    Specifications Show all

    General Information
    Base
    EX39  [ Exclusionary Mogul Screw]
    Operating Position
    Base Up +/- 15 D  [ Base Up +/- 15 D]
    Main Application
    General Lighting (G)
    Life to 50% Failures (Nom)
    10000 h
    ANSI Code HID
    M58/O
    Light Technical
    Color Code
    640  [ CCT of 4000K]
    Luminous Flux (Rated) (Min)
    19350 lm
    Luminous Flux (Rated) (Nom)
    21500 lm
    Color Designation
    Cool White (CW)
    Design Mean Lumens
    16500 lm
    Chromaticity Coordinate X (Nom)
    395
    Chromaticity Coordinate Y (Nom)
    395
    Correlated Color Temperature (Nom)
    3800 K
    Luminous Efficacy (Rated) (Min)
    77 lm/W
    Luminous Efficacy (rated) (Nom)
    86 lm/W
    Color Rendering Index (Nom)
    62
    Operating and Electrical
    Lamp Current (Nom)
    2.1 A
    Ignition Supply Voltage (Min)
    350 V
    Re-Ignition Time (Min) (Max)
    15 min
    Ignition Time (Max)
    120 s
    Voltage (Max)
    148 V
    Voltage (Min)
    118 V
    Voltage (Nom)
    133 V
    Mechanical and Housing
    Bulb Finish
    Clear (CL)
    Cap-Base Information
    Nic/Brass
    Bulb Material
    Hard Glass
    Approval and Application
    Energy Saving Product
    Not Applicable
    Mercury (Hg) Content (Nom)
    32 mg
    UV
    Pet (Niosh) (Nom)
    188 h/500lx
    Damage Factor D/fc (Nom)
    0.43
    Luminaire Design Requirements
    Bulb Temperature (Max)
    400 °C
    Cap-Base Temperature (Max)
    210 °C
    Product Data
    Order product name
    MP250/BU 12PK
    EAN/UPC - Product
    046677281243
    Order code
    281246
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    12
    Material Nr. (12NC)
    928601161903
    Net Weight (Piece)
    0.001 kg

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    EX39, ED-28
    EX39, ED-28
    EX39
    EX39
