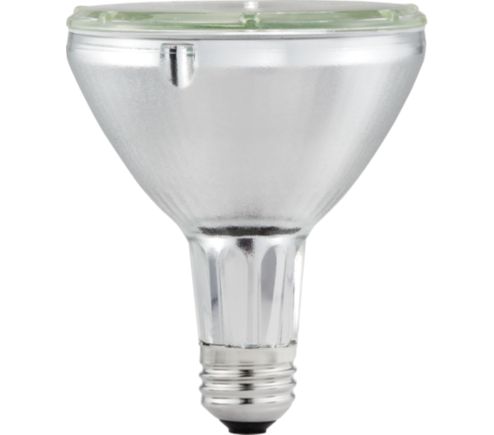

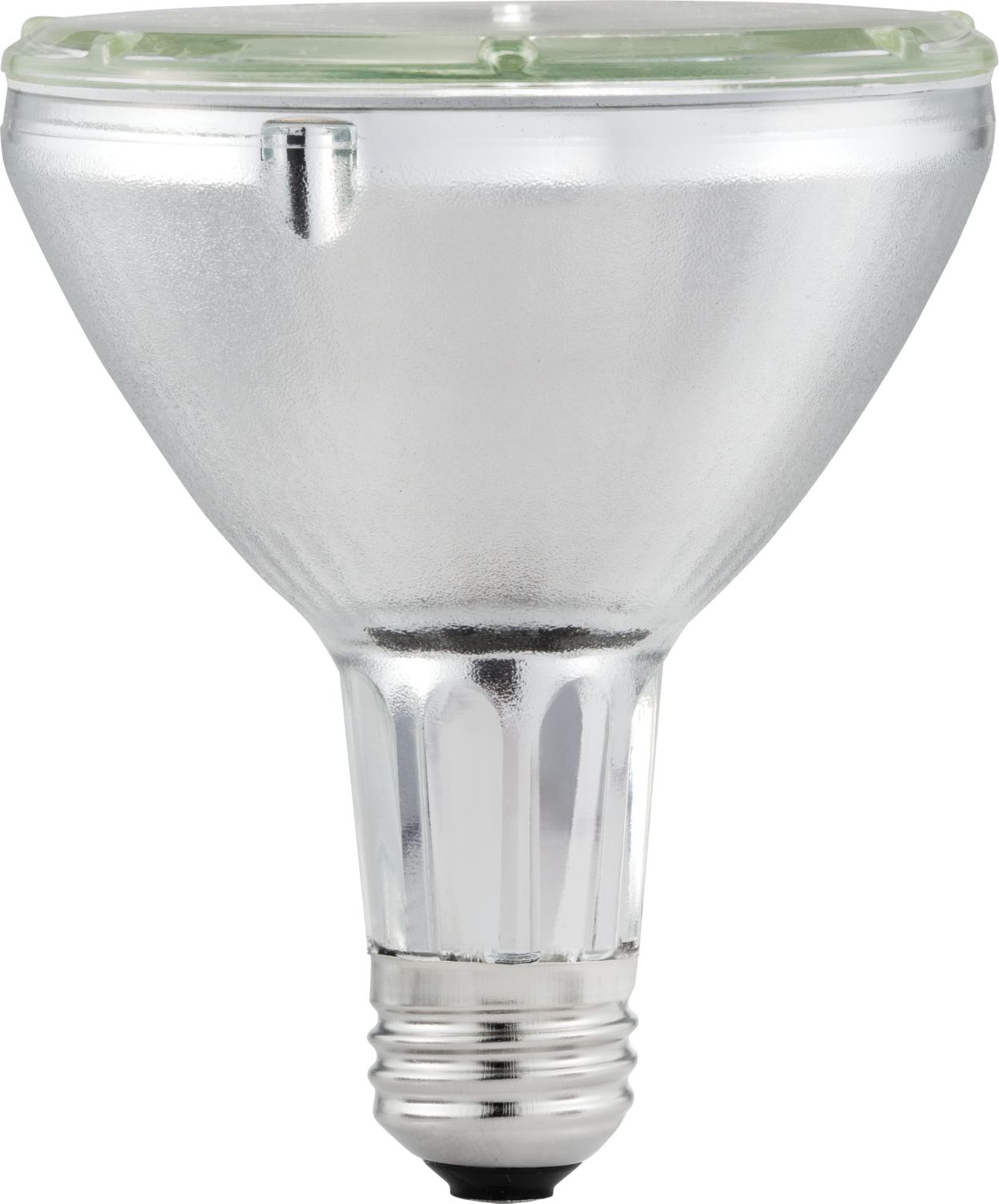

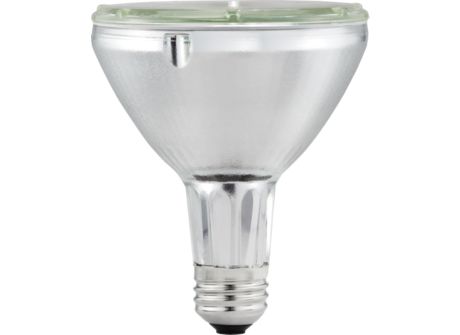

MasterColor CDM70 PAR30L/M/FL/4K (942)

Specifications Show all

General information

Base	E26  [ Single Contact Medium Screw]
Operating Position	Universal  [ Universal]
Main Application	General Lighting (G)
Life to 50% Failures (Nom)	9000 h
ANSI Code HID	M139/O
Features	FADEBLOCKTM  [ FadeBlock™]
Footnotes HID 1	Operate only on thermally protected ballasts. (397)

Light technical

Color Code	942  [ CCT of 4200K]
Beam Angle (Nom)	40 °
Luminous Flux (Rated) (Nom)	4300 lm
Luminous Intensity (Nom)	9000 cd
Beam Description	Flood  [ Flood]
Color Designation	Cool White (CW)
Lumen Maintenance 5000 h (Nom)	65 %
Design Mean Lumens	3010 lm
Chromaticity Coordinate X (Nom)	0.371
Chromaticity Coordinate Y (Nom)	0.366
Correlated Color Temperature (Nom)	4200 K
Luminous Efficacy (rated) (Nom)	61.4 lm/W
Color Rendering Index (Min)	89
Color Rendering Index (Nom)	94

Operating and electrical

Power (Rated) (Nom)	73 W
Lamp Current (Nom)	0.83 A
Ignition Supply Voltage (Max)	198 V
Re-Ignition Time (Min) (Max)	10 min
Ignition Time (Max)	30 s
Voltage (Max)	100 V
Voltage (Min)	75 V
Voltage (Nom)	88 V

Mechanical and housing

Bulb Finish	Reflector
Cap-Base Information	Nic/Brass
Bulb Material	Hard Glass
Bulb Shape	PAR30L  [ PAR 3.75 inch/95mm Long]

UV

Pet (Niosh) (Nom)	100 h.klx
Damage Factor D/fc (Nom)	0.40

Luminaire design requirements

Bulb Temperature (Max)	572 °F
Cap-Base Temperature (Max)	392 °F
Cap-Base Temperature (Max)-DUP(do not use)	392 °F

Product data

Order product name	MasterColor CDM70 PAR30L/M/FL/4K (942)
EAN/UPC - Product	046677151430
Order code	151431
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	6
Material Nr. (12NC)	928601158601
Net Weight (Piece)	0.002 lb
