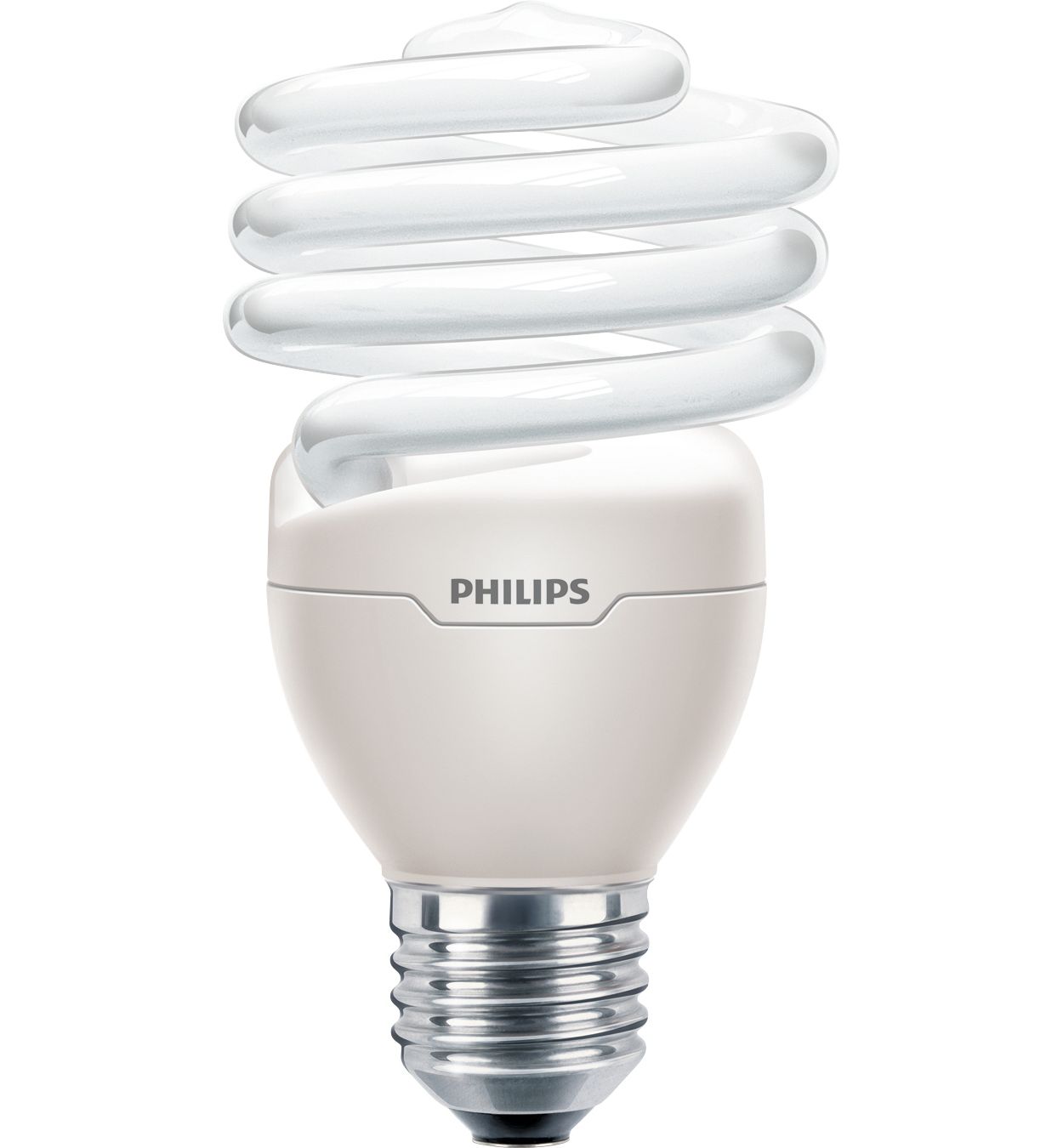

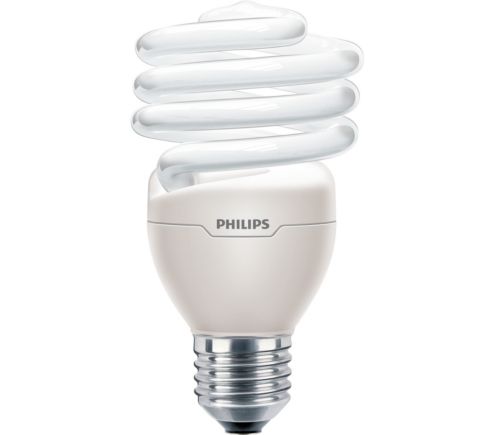

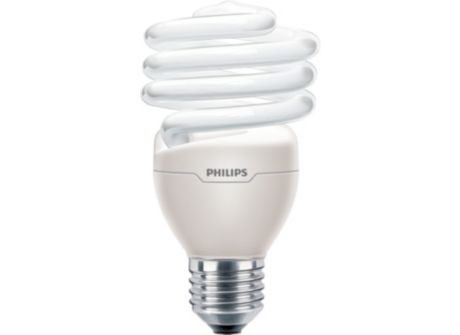

EL/mdTQS 23W T2

Specifications Show all

Operating and Electrical

Lamp Current (Nom)	360 mA
Voltage (Nom)	110-127 V
Power Factor (Fraction)	0.55
Line Frequency	50 or 60 Hz
Power Consumption	23.0 W
Input Frequency	50 or 60 Hz

Approval and Application

Mercury (Hg) Content (Nom)	2 mg
Energy Consumption kWh/1000 h	23 kWh
Mercury (Hg) Content (Max)	2.5 mg

Product Data

Full product name	EL/mdTQS 23W T2
EAN/UPC - Case	50046677414011
Order product name	EL/mdTQ 23W T2
Order code	414011
Numerator - Packs per outer box	6
Material number (12NC)	929689749901
Numerator - Quantity Per Pack	1

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Shape

Spiral

General Information

Cap-Base	E26  [Single Contact Medium Screw]
Switching Cycle	5,000
Rated Lifetime (Hours)	10,000 hour(s)
Lighting Technology	Compact Fluorescent Integrated
Nominal lifetime	10,000 hour(s)

Light Technical

Luminous Flux	1,600 lumen
Chromaticity Coordinate X (Nom)	463
Chromaticity Coordinate Y (Nom)	420
Luminous Efficacy (rated) (Nom)	67 lm/W
Correlated Color Temperature (Nom)	2700 K
LLMF At End Of Nominal Lifetime (Nom)	70 %
Color Designation	Warm White (WW)
Color Code	827  [CCT of 2700K]
