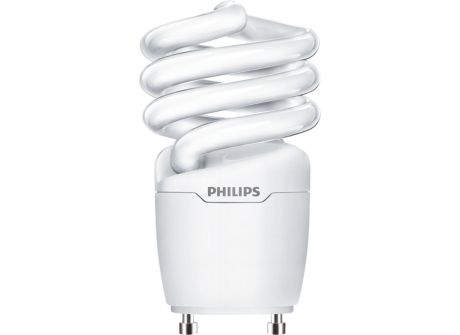

EL/mdTQS 13W GU24

Specifications Show all

Operating and Electrical

Lamp Current (Nom)	210 mA
Voltage (Nom)	110-127 V
Power Factor (Fraction)	0.55
Line Frequency	50 or 60 Hz
Power Consumption	13.0 W
Input Frequency	50 or 60 Hz

Approval and Application

Energy Consumption kWh/1000 h	13 kWh
Mercury (Hg) Content (Max)	2 mg

Product Data

Full product name	EL/mdTQS 13W GU24
EAN/UPC - Case	50046677454192
Order code	454199
Numerator - Packs per outer box	6
Material number (12NC)	929689791101
Numerator - Quantity Per Pack	1
Order product name	EL/mdTQS 13W GU24

Controls and Dimming

Dimmable

No

General Information

Cap-Base	GU24  [GU24]
Switching Cycle	5,000
Rated Lifetime (Hours)	10,000 hour(s)
Lighting Technology	Compact Fluorescent Integrated
Nominal lifetime	10,000 hour(s)

Mechanical and Housing

Bulb Shape

EL/mdTQS

Light Technical

Luminous Flux	900 lumen
Chromaticity Coordinate Y (Nom)	412
Chromaticity Coordinate X (Nom)	459
Luminous Efficacy (rated) (Nom)	67 lm/W
Color rendering index (CRI)	80
Correlated Color Temperature (Nom)	2700 K
LLMF At End Of Nominal Lifetime (Nom)	50 %
Color Designation	Warm White (WW)
Color Code	827  [CCT of 2700K]
