• Halogen reflector lamps – proven reliability

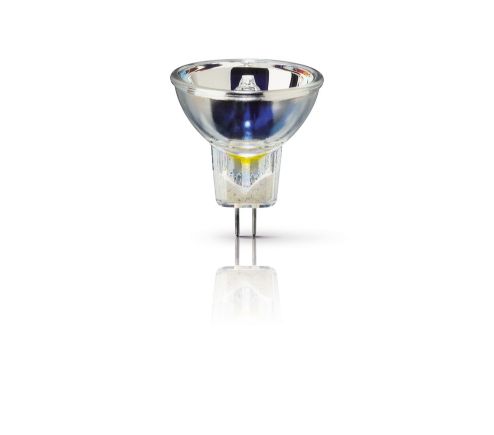

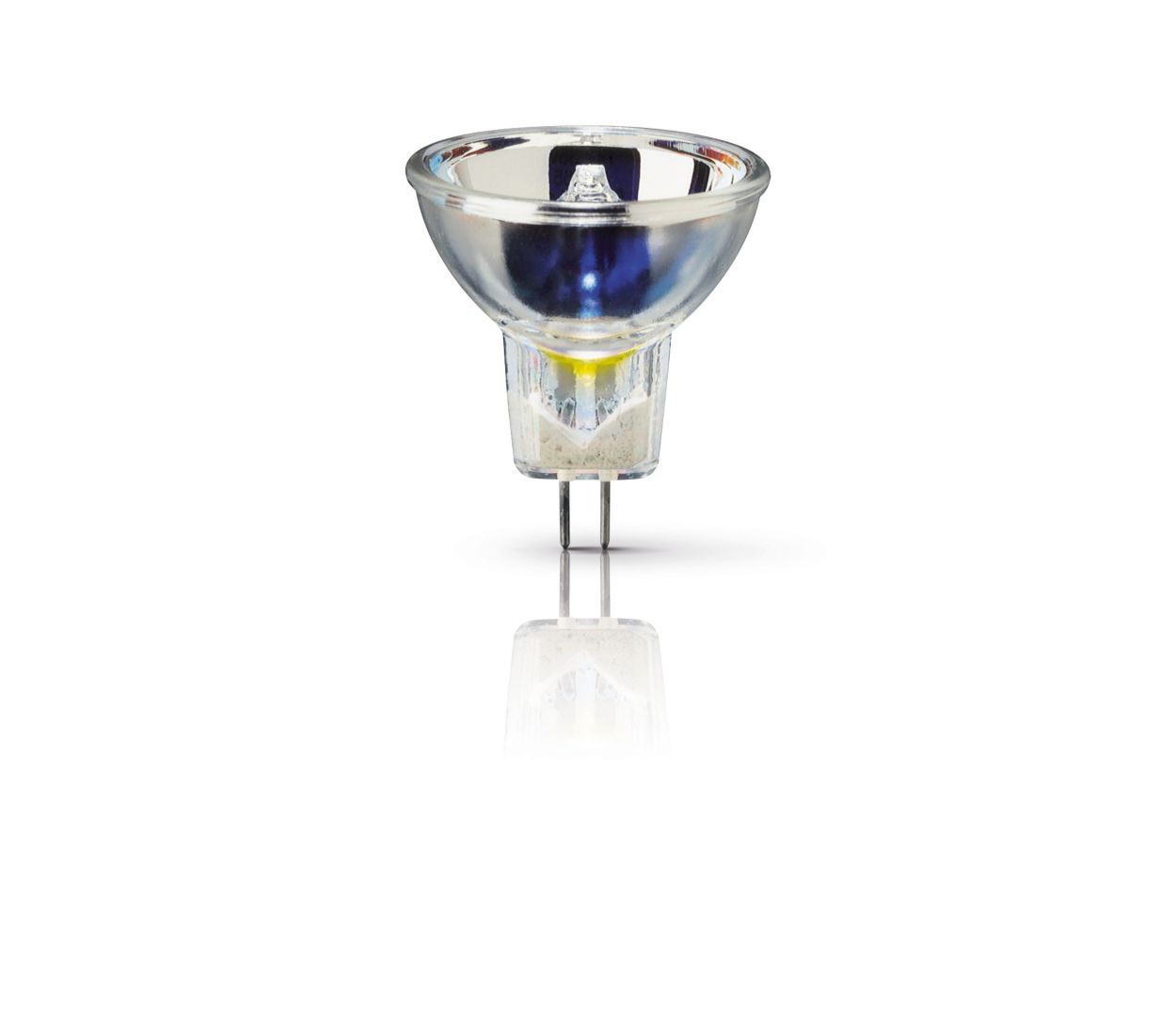

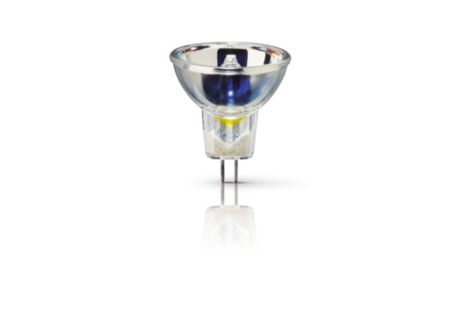

    13528 15W GZ4 6V 1CT/24

    13528 15W GZ4 6V 1CT/24

    Order code: 324038

    Downloads

    Spec Sheet
    Size:219.3 kB
    Spec Sheet
    Size:467.5 kB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Cap-Base
GZ4  [ GZ4]
Philips Code
13528
ANSI Code
-
LIF Code
-
Operating Position
S105  [ s105]
Main Application
Projection
Life To 50% Failures (Nom)
750 h
J Code
-
Light Technical
Correlated Color Temperature (Nom)
2900 K
Color Rendering Index (Nom)
100
Operating and Electrical
Power (Rated) (Nom)
15 W
Voltage (Nom)
6 V
Controls and Dimming
Dimmable
Yes
Mechanical and Housing
Cap-Base Information
na  [ -]
Bulb Material
Quartz-UV Open
Reflector Finish
Smooth
Filament Shape
-
Filament Dimensions WxH
-
Luminaire Design Requirements
Bulb Temperature (Max)
900 °C
Pinch Temperature (Max)
350 °C
Working Distance WD
92 mm
Product Data
Order product name
13528 15W GZ4 6V 1CT/24
EAN/UPC - Product
8718696689936
Order code
324038
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
24
Material Nr. (12NC)
923883810105
Net Weight (Piece)
12.000 g
Installation Diagrams
GZ4
GZ4
