• MSR Gold™ SA Double Ended – for extended performance

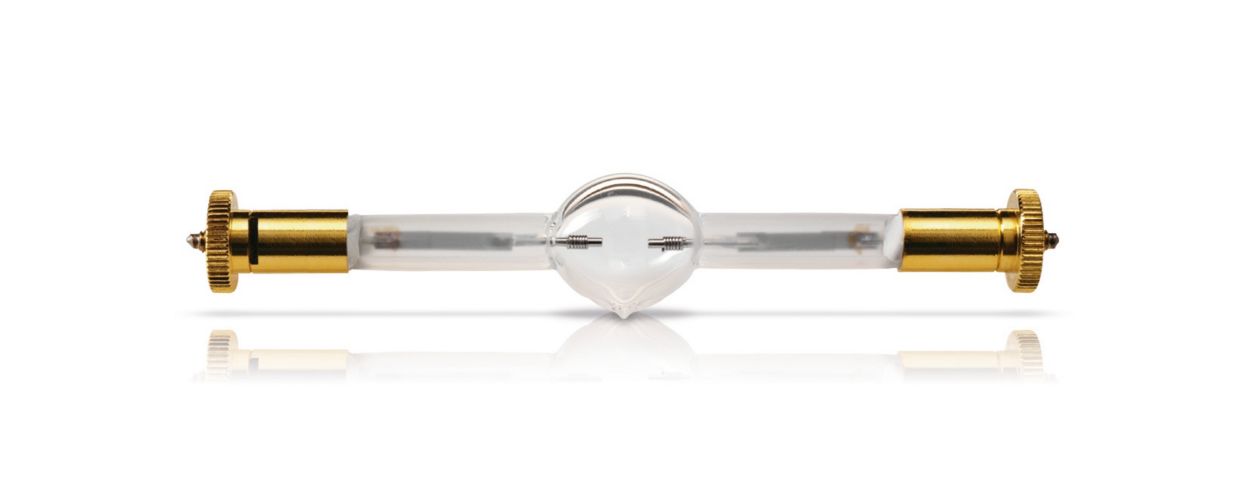

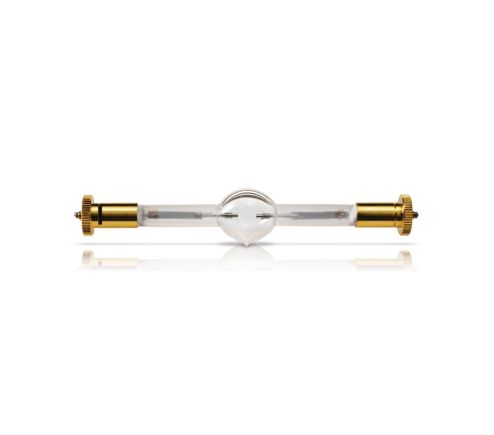

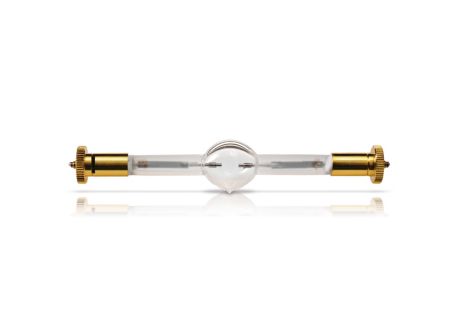

    MSR Gold™ 700 SA/2 DE 1CT/4

    MSR Gold™ 700 SA/2 DE 1CT/4

    Downloads

    Spec Sheet
    Size:251.0 kB
    Spec Sheet
    Size:250.9 kB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Cap-Base
SFC10-4  [ SFC10-4]
Operating Position
Universal  [ Universal]
Main Application
Studio/Disco
Life To 50% Failures (Nom)
750 h
System Description
SA/2 DE
Light Technical
Color Code
-  [ Not Specified]
Initial lumen (Min)
47000 lm
Initial lumen (Nom)
56000 lm
Chromaticity Coordinate X (Nom)
299
Chromaticity Coordinate Y (Nom)
320
Correlated Color Temperature (Nom)
7500 K
Luminous Efficacy (rated) (Nom)
80 lm/W
Color Rendering Index (Nom)
75
Operating and Electrical
Power (Rated) (Nom)
700 W
Lamp Current (Nom)
11.5 A
Ignition Supply Voltage (Min)
198 V
Controls and Dimming
Dimmable
No
Mechanical and Housing
Cap-Base Information
SFC10-4
Luminaire Design Requirements
Pinch Temperature (Max)
500 °C
Product Data
Order product name
MSR Gold™ 700 SA/2 DE 1CT/4
EAN/UPC - Product
8718291221234
Order code
287136
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
4
Material Nr. (12NC)
928174705115
Net Weight (Piece)
34.000 g

Eco passport - Our environmental product specifications overview

Philips cares about the environment and society at large, and strongly supports eco-design of products.

Installation Diagrams
MSR Gold™ SA/DE
MSR Gold™ SA/DE
SFC 10-4
SFC 10-4
Photometrics
MSR Gold™ 700 SA/2 DE
MSR Gold™ 700 SA/2 DE
MSR Gold™ 700 SA/2 DE
MSR Gold™ 700 SA/2 DE
