• Energy efficiency and long life

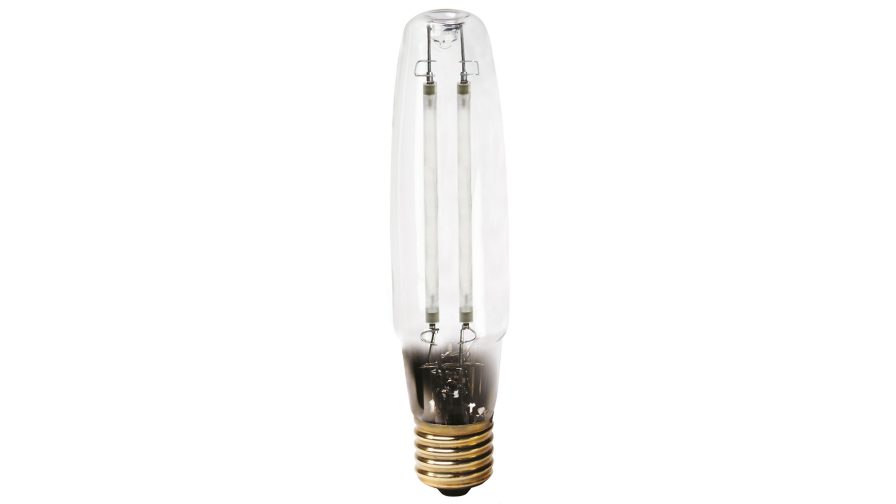

    C250S50/2 12PK

    C250S50/2 12PK

    Order code: 377176

    Downloads

    Spec Sheet
    Size:146.5 kB
    Spec Sheet
    Size:146.5 kB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Cap-Base
E39  [ Single Contact Mogul Screw]
Operating Position
Universal  [ Universal]
Main Application
General and Street Lighting
ANSI Code HID
S50
Light Technical
Luminous Flux (Rated) (Min)
25650 lm
Luminous Flux (Rated) (Nom)
28500 lm
Design Mean Lumens
24750 lm
Chromaticity Coordinate X (Nom)
521
Chromaticity Coordinate Y (Nom)
415
Correlated Color Temperature (Nom)
2100 K
Luminous Efficacy (rated) (Min)
102.6 lm/W
Luminous Efficacy (rated) (Nom)
114 lm/W
Color Rendering Index (Nom)
21
Operating and Electrical
Lamp Current (Nom)
3 A
Ignition Supply Voltage (Max)
198 V
Re-Ignition Time (Min) (Max)
1 s
Ignition Time (Max)
5 s
Voltage (Max)
120 V
Voltage (Min)
90 V
Voltage (Nom)
100 V
Mechanical and Housing
Bulb Finish
Clear (CL)
Cap-Base Information
Nic/Brass
Bulb Material
Hard Glass
Approval and Application
Mercury (Hg) Content (Max)
63.8 mg
Luminaire Design Requirements
Bulb Temperature (Max)
400 °C
Cap-Base Temperature (Max)
210 °C
Product Data
Order product name
C250S50/2 12PK
EAN/UPC - Product
046677377175
Order code
377176
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
12
Material Nr. (12NC)
928601145501
Net Weight (Piece)
0.001 kg

Eco passport - Our environmental product specifications overview

Philips cares about the environment and society at large, and strongly supports eco-design of products.

Installation Diagrams
E39, ED-18
E39, ED-18
E39
E39
