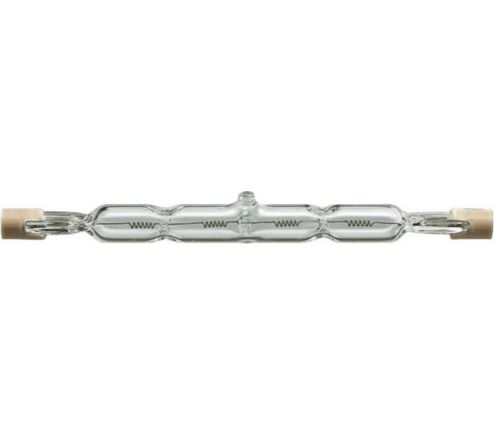

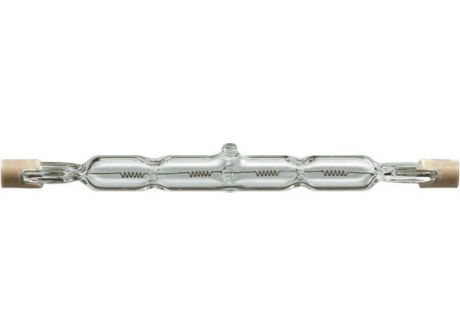

Double Ended Linear BC300T3Q/CL/TP 120V 6/2PK

  • Double Ended Linear

    Double Ended Linear BC300T3Q/CL/TP 120V  6/2PK

    Double Ended Linear BC300T3Q/CL/TP 120V 6/2PK

    Downloads

    Spec Sheet
    Size:146.5 kB
    Spec Sheet
    Size:146.5 kB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Cap-Base
R7S  [ R7s]
Operating Position
Horizontal +/- 4 D  [ Horizontal +/- 4 D]
Nominal Lifetime (Nom)
2000 h
Light Technical
Initial lumen (Nom)
5000 lm
Correlated Color Temperature (Nom)
2900 K
Luminous Efficacy (rated) (Nom)
16 lm/W
Color Rendering Index (Nom)
100
Operating and Electrical
Power (Rated) (Nom)
300 W
Lamp Current (Nom)
2.5 A
Starting Time (Nom)
0.0 s
Voltage (Nom)
120 V
Controls and Dimming
Dimmable
Yes
Mechanical and Housing
Bulb Finish
Clear (CL)
Approval and Application
Energy Efficiency Label (EEL)
E
Luminaire Design Requirements
Bulb Temperature (Max)
900 °C
Pinch Temperature (Max)
350 °C
Product Data
Order product name
Double Ended Linear BC300T3Q/CL/TP 120V 6/2PK
EAN/UPC - Product
50046677415711
Order code
415711
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
6
Material Nr. (12NC)
924884936301
Net Weight (Piece)
0.010 kg

Eco passport - Our environmental product specifications overview

Philips cares about the environment and society at large, and strongly supports eco-design of products.

Installation Diagrams
R7s
R7s
R7s
R7s
