• High light output in a compact size

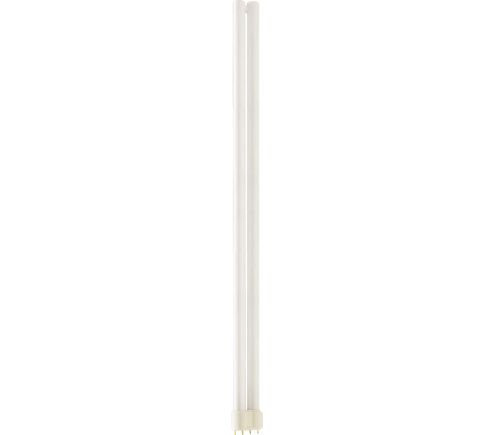

    PL-L 50W/835/4P/RS

    PL-L 50W/835/4P/RS

    Downloads

    Spec Sheet
    Size:116.2 kB
    Spec Sheet
    Size:116.2 kB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Cap-Base
2G11  [ 2G11]
Life To 50% Failures (Nom)
10000 h
System Description
Rapid Start (RS)
Light Technical
Color Code
835  [ CCT of 3500K]
Initial lumen (Nom)
4000 lm
Color Designation
White (WH)
Lumen Maintenance 10000 h (Nom)
91 %
Lumen Maintenance 2000 h (Nom)
94 %
Lumen Maintenance 5000 h (Nom)
92 %
Chromaticity Coordinate X (Nom)
411
Chromaticity Coordinate Y (Nom)
393
Correlated Color Temperature (Nom)
3500 K
Luminous Efficacy (rated) (Nom)
80 lm/W
Color Rendering Index (Nom)
82
Operating and Electrical
Power (Rated) (Nom)
50 W
Lamp Current (Nom)
0.430 A
Voltage (Nom)
150 V
Controls and Dimming
Dimmable
Yes
Mechanical and Housing
Cap-Base Information
4P
Product Data
Order product name
PL-L 50W/835/4P/RS
EAN/UPC - Product
046677112684
Order code
347534
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
25
Material Nr. (12NC)
927908583527
Net Weight (Piece)
140.000 g
ILCOS Code
FSD-50/35/1B-L/P-2G11
